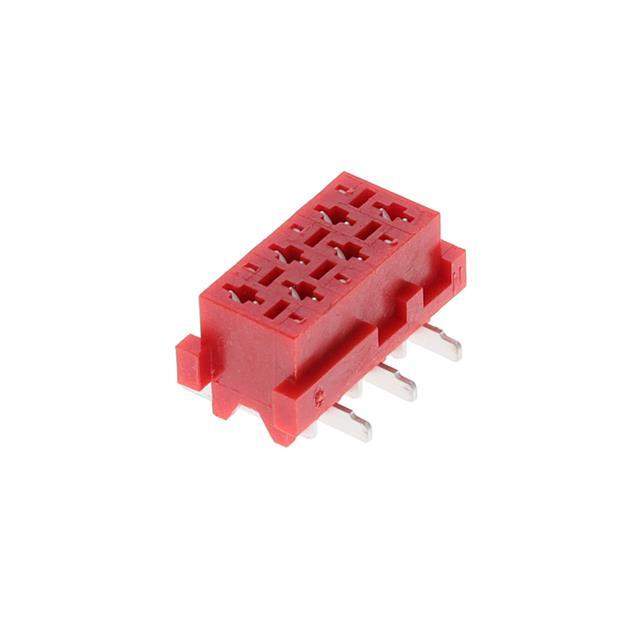

Same model may have multiple batches, images only for reference.

CA3206M1300

Name: CA3206M1300
Brand: Cvilux USA
SKU: 1167181
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CA3206M1300
Manufacturer	Cvilux USA
Catalog	Rectangular Connectors
Description	1.27MM (.050") FEMALE TOP ENTRY / 6 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Datasheet	CA3206M1300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Cvilux USA
Series	CA32
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.207" (5.26mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	1.5A
Voltage Rating	230VAC/DC
Insulation Material	Thermoplastic
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2987-CA3206M1300DKR,2987-CA3206M1300CT,2987-CA3206M1300TR
Standard Package	800
Win Source Part Number	1167181-CA3206M1300
Ultra Librarian 3D Model	Ultra Librarian CA3206M1300 CAD Model

Description

The CA3206M1300 is a 6 position female socket connector used in board to board or cable applications.

Positions: 6
Application: Board to board or cable
Pitch: 0.100" (2.54mm)
Termination: Soldering
Packaging: Tape and Reel
Material: Phosphor Bronze
Voltage Rating: 230VAC/DC
Operating Temperature: -40°C to 105°C
Tolerance: ±30%
