Same model may have multiple batches, images only for reference.

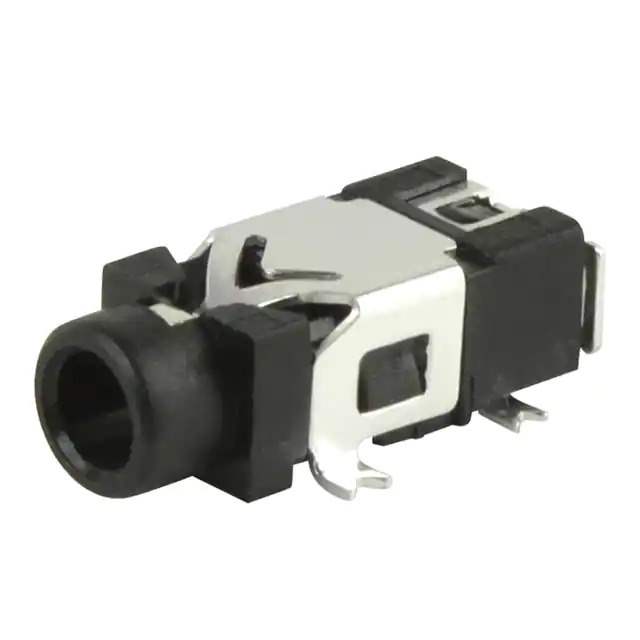

SJ2-25102A-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

SJ2-25102A-SMT-TR

Part No SJ2-25102A-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 2.5 MM, RT, 2 CONDUC
Datasheet
SJ2-25102A-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr CUI Inc.
Series SJ2
Package Tape & Reel
Product Status Obsolete
Connector Type Phone Jack
Gender Female
Signal Lines Mono
Industry Recognized Mating Diameter 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone
Actual Diameter 0.102" (2.60mm)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 0.433" (11.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polyamide (PA10T), Nylon 10T
Contact Material Copper Alloy
Base Product Number SJ2-25
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 854759-SJ2-25102A-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ2-25102A-SMT-TR CAD Model

Description

The SJ2 series audio connector, with Win Source Part Number 854759-SJ2-25102A-SMT-TR, is a high-quality connector for audio applications.

  • Connector Type: phone jack
  • Termination: solder
  • Shielded: unshielded
  • Contact Material: copper alloy
  • Gender: female
  • Standard Package: 1,000 pcs
  • Rated Voltage: 12VDC
  • Conductors: 2
  • Contacts: 2
  • Signal Line: mono
  • Mating Length: 0.433" (11.00mm)
  • Mounting Type: surface mount
  • Mounting Orientation: right angle
  • Operating Temperature Range: -25°C to 85°C
  • Product Status: obsolete
  • Manufacturer: CUI Inc.
