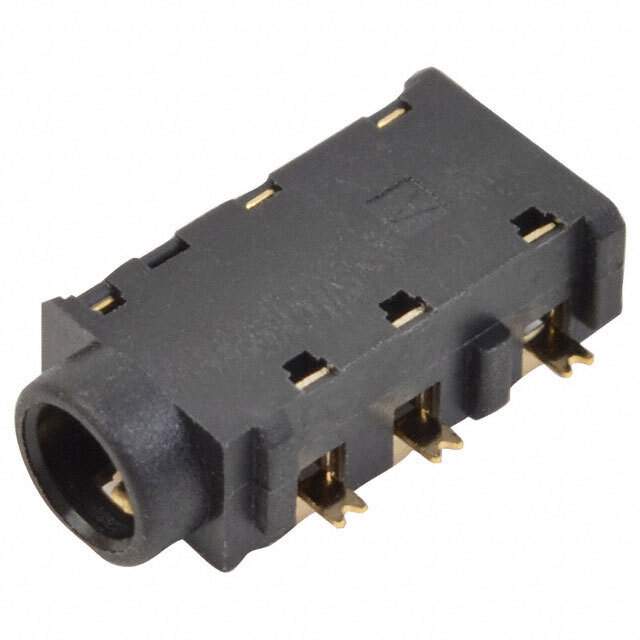

SJ-43616-SMT-TR

Part No SJ-43616-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK 4COND 3.5MM SMD R/A / MID MOUNT AUDIO JACK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CUI Devices
Packaging Reel
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (4 Conductor, TRRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 4 Conductors, 6 Contacts
Internal Switch(s) Two Switches
Mounting Style Board Cutout, Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Temperature Range - Operating -20°C ~ 85°C
Voltage - Rated 12VDC
Current Rating (Amps) 1A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Gold
Body Color Black
Housing Material Polyamide (PA6T), Nylon 6T
Contact Material Copper Alloy
Manufacturer Pack Quantity 650
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809791-SJ-43616-SMT-TR
Ultra Librarian 3D Model Ultra Librarian SJ-43616-SMT-TR CAD Model

Description

The 809791-SJ-43616-SMT-TR is a phone jack connector manufactured by CUI Devices.

  • Mounting Style: Board Cutout, Surface Mount, Right Angle
  • Number of Conductors: 4
  • Number of Contacts: 6
  • Number of Switches: 2
  • Contact Material: Copper Alloy with Gold Plating
  • Voltage Rating: 12VDC
  • Shielding: Unshielded
  • Housing Material: Polyamide (PA6T) and Nylon 6T
  • Industry-Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
  • Mating Length/Depth: 0.551" (14.00mm)
  • Actual Diameter: 0.142" (3.60mm)
  • Temperature Range: -20°C ~ 85°C
