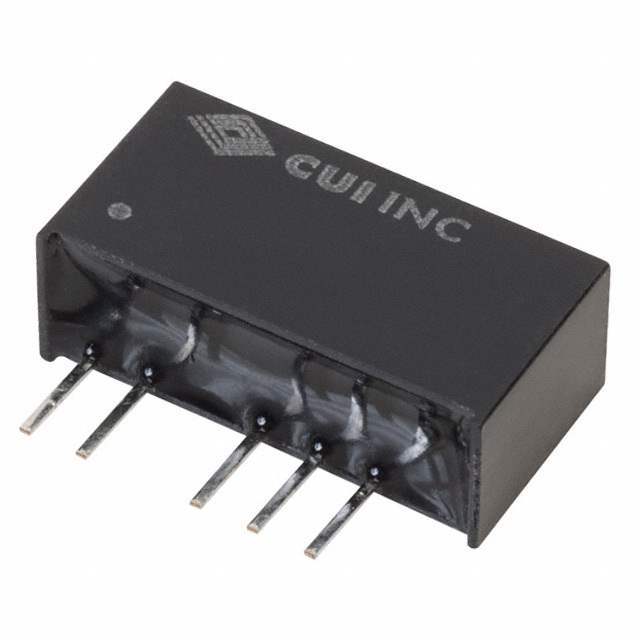

Same model may have multiple batches, images only for reference.

PDM2-S24-D12-S

Name: PDM2-S24-D12-S
Brand: CUI Inc.
SKU: WS1209059
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PDM2-S24-D12-S
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W
Datasheet	PDM2-S24-D12-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209059-PDM2-S24-D12-S
Manufacturer	CUI Inc.
Category	Power Supplies - Board Mount DC DC Converters
Package	Tube
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Operating Temperature	-40°C ~ 105°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	6-SIP Module, 5 Leads
Ultra Librarian 3D Model	Ultra Librarian PDM2-S24-D12-S CAD Model

Alternative Products

Description

FEATURES
• 2 W isolated output
• smaller package
• single/dual unregulated output
• 1,500 Vdc isolation
• short circuit protection
• extended temperature range (-40~105°C)
• antistatic protection up to 8kV
• high efficiency at light load
• efficiency up to 86%
