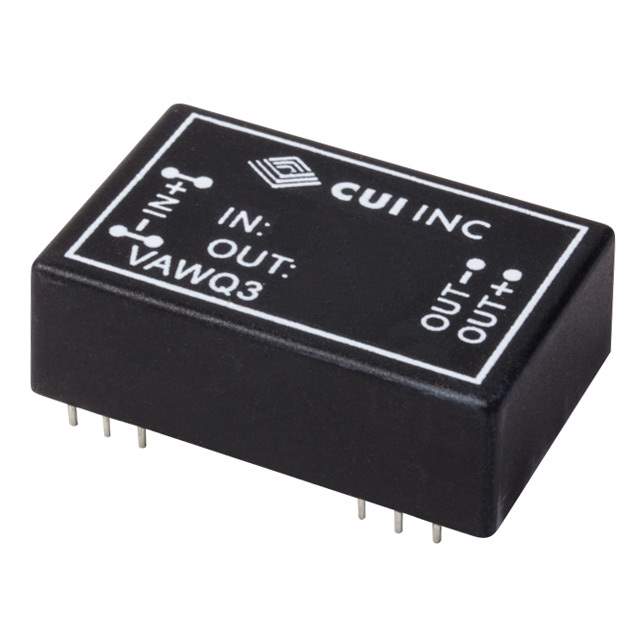

Same model may have multiple batches, images only for reference.

VAWQ3-Q24-S5H

Name: VAWQ3-Q24-S5H
Brand: CUI Inc.
SKU: 1350644
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	VAWQ3-Q24-S5H
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 3W / Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 36V Input
Datasheet	VAWQ3-Q24-S5H Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	CUI Inc.
Series	VAWQ3 (3W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	600mA
Power (Watts)	3 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-25°C ~ 71°C
Efficiency	72%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 15 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	VAWQ3
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1350644-VAWQ3-Q24-S5H
Ultra Librarian 3D Model	Ultra Librarian VAWQ3-Q24-S5H CAD Model

Alternative Products

Description

The CUI VAWQ3 series isolated module is a 3W DC-DC converter with a SCP feature.

Power (Watts): 3W
Features: SCP
Package: Box
Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Voltage - Input: 9V ~ 36V
Voltage - Output: 5V
Voltage - Isolation: 3 kV
Current - Output (Max): 600mA
Mounting Type: Through Hole
Operating Temperature: -25°C ~ 71°C
Applications: ITE (Commercial)
Series: VAWQ3
