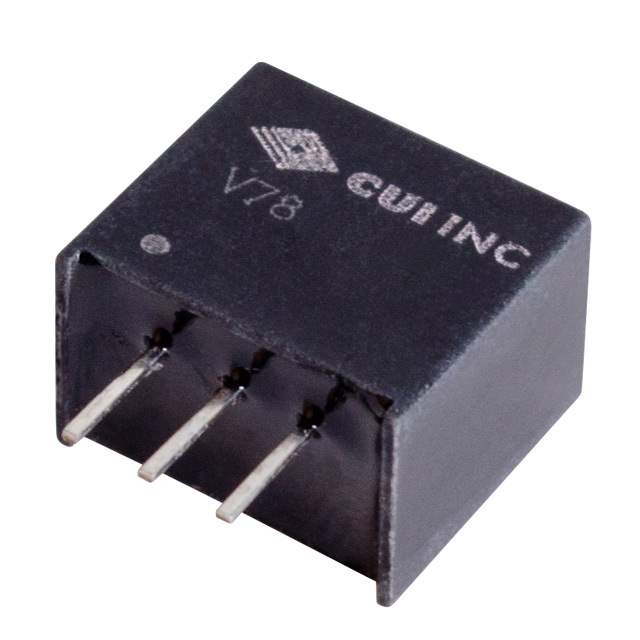

Same model may have multiple batches, images only for reference.

V7805-500

Name: V7805-500
Brand: CUI Inc.
SKU: 1320597
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V7805-500
Manufacturer	CUI Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2.5W / Linear Regulator Replacement DC DC Converter 1 Output 5V 500mA 6.5V - 32V Input
Datasheet	V7805-500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	CUI Inc.
Packaging	Tube
Product Status	Not For New Designs
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	6.5V
Voltage - Input (Max)	32V
Voltage - Output 1	5V
Current - Output (Max)	500mA
Power (Watts)	2.5 W
Applications	ITE (Commercial)
Features	OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93%
Mounting	Through Hole
Case / Package	3-SIP Module
Size / Dimension	0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm)
Base Product Number	V7805
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	102-1709,V7805500,656-90840R
Standard Package	43
Win Source Part Number	1320597-V7805-500
Ultra Librarian 3D Model	Ultra Librarian V7805-500 CAD Model

Alternative Products

Description

The CUI Inc. V7805-500 is a linear voltage regulator that can operate with an input voltage range of 6.5V to 32V and a maximum output current of 500mA.

Input Voltage Range: 6.5V to 32V
Maximum Output Current: 500mA
Package Size: 3-SIP module
Efficiency: 93%
Protection Features: over-temperature protection (OTP) and short-circuit protection (SCP)
Dropout Voltage: 0.5V
