Same model may have multiple batches, images only for reference.

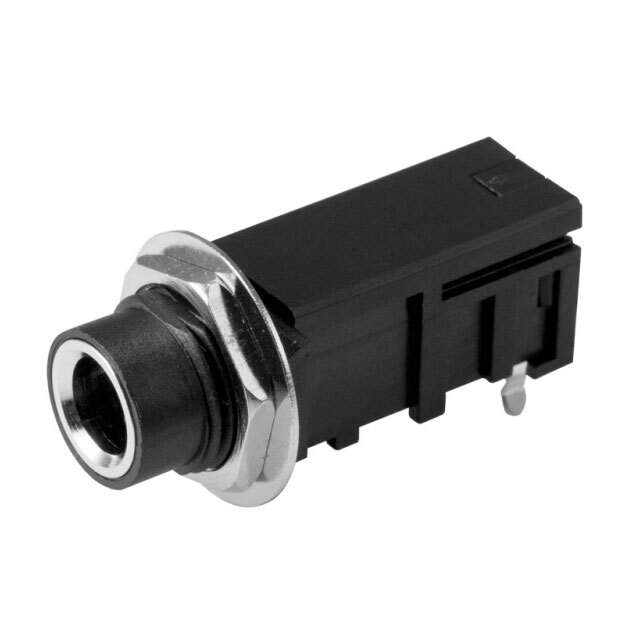

SJ-63053A Real Image
Same model may have multiple batches, images only for reference.

SJ-63053A

Part No SJ-63053A
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description AUDIO JACK, 6.35 MM, HORIZONTAL, / 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
SJ-63053A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Barrel Connectors - Audio Connectors
Mfr CUI Devices
Series SJ
Package Bag
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 6.35mm (0.250", 1/4") - Headphone
Actual Diameter 0.253" (6.43mm)
Number of Positions/Contacts 3 Conductors, 3 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Features Cover, Mounting Hardware, Thread Lock
Temperature Range - Operating -25°C ~ 70°C
Voltage - Rated 12VDC
Current Rating (Amps) 1 A
Mating Length/Depth 1.220" (31.00mm)
Contact Material - Plating Silver
Body Color Black
Housing Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Thread Size M12
Base Product Number SJ-63
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349163-SJ-63053A
Ultra Librarian 3D Model Ultra Librarian SJ-63053A CAD Model

Description

The SJ series connector is an audio connector with a phone jack type from CUI Devices.

  • Connector Type: phone jack
  • Gender: female
  • Shielding: unshielded
  • Contact Material: phosphor bronze
  • Contact Material Plating: silver
  • Number of Conductors: 3
  • Number of Contacts: 3
  • Voltage Rating: 12VDC
  • Panel Hole Size: 6.35mm (0.250", 1/4")
  • Actual Diameter: 0.253" (6.43mm)
  • Mating Length/Depth: 1.220" (31.00mm)
  • Thread Size: M12
  • Operating Temperature: -25°C to 70°C
  • ECCN: EAR99
