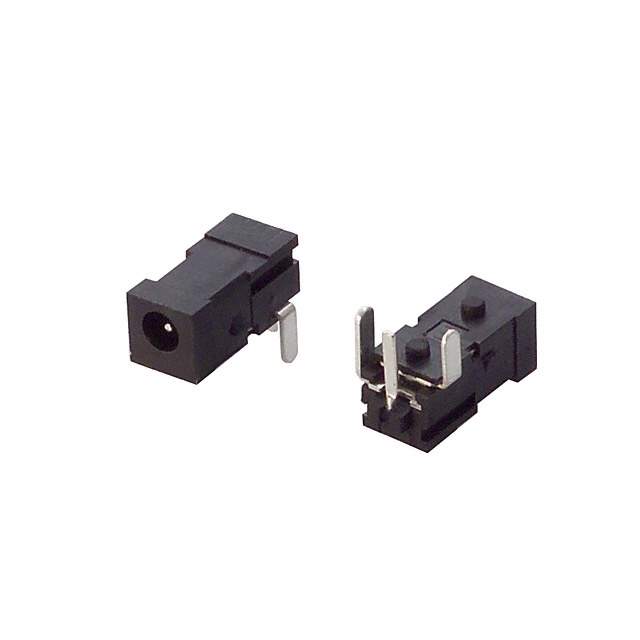

PJ1-022

Name: PJ1-022
Brand: CUI Inc.
SKU: 1334167
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PJ1-022
Manufacturer	CUI Inc.
Catalog	Barrel - Power Connectors
Description	CONN PWR JACK 0.7X2.35MM SOLDER / Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
Datasheet	PJ1-022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Barrel Connectors>Power Connectors
Manufacturer	CUI Devices
Packaging	Bag
Connector Type	Jack
Gender	Male
Industry Recognized Mating Diameter	0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
Actual Diameter	0.026" (0.65mm ID), 0.110" (2.80mm OD)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Internal Switch(s)	Single Switch, Normally Closed
Mounting	Through Hole, Right Angle
Termination	Solder
Shielding	Unshielded
Features	Board Guide
Voltage - Rated	24VDC
Current Rating (Amps)	1 A
Mating Length/Depth	0.315" (8.00mm)
Material Flammability Rating	UL94 V-0
Contact Material - Plating	Silver
Temperature Range - Operating	-25°C ~ 85°C
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material	Brass, Copper Alloy
Body Color	Black
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	045-0881R,PJ1022,CP1-022-NDR,CP1-022,2266-PJ1-022
Standard Package	500
Win Source Part Number	1334167-PJ1-022
Ultra Librarian 3D Model	Ultra Librarian PJ1-022 CAD Model

Description

The CUI Devices PJ1-022 is a high-quality power connector that features a board guide and a male jack connector type.

Feature: Board guide
Connector Type: Male jack
Voltage: 24VDC
RoHS3 Compliant: Yes
Supply and Demand: Balanced
Standard Package: 500
Mounting: Through hole or right angle
Contact Material: Brass and copper alloy with silver plating
Housing Material: Polyamide (PA66) and nylon 6/6
Insulation Color: Not specified
