Same model may have multiple batches, images only for reference.

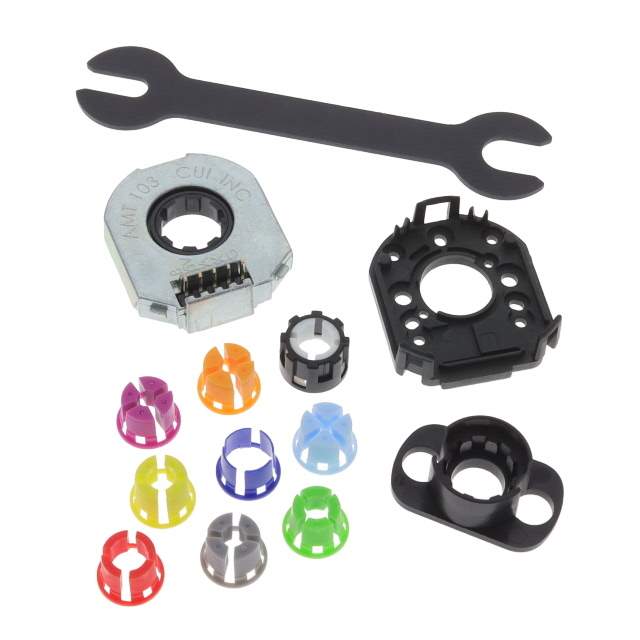

AMT103-V Real Image
Same model may have multiple batches, images only for reference.

AMT103-V

Part No AMT103-V
Manufacturer CUI Inc.
Catalog Encoders
Description ROTARY ENCODER INCREMENT PROGPPR / INCREMENTAL ENCODER
Datasheet
AMT103-V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CUI Devices
Encoder Type Incremental
Output Type Quadrature with Index (Incremental)
Pulses per Revolution Programmable
Supply Voltage (V) 3.6V ~ 5.5V
Actuator Type 2mm ~ 8mm Open Center
Detent No
Built in Switch No
Mounting Style Chassis Mount, Motors
Orientation Right Angle
Termination Style Terminal Pins
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812446-AMT103-V
Ultra Librarian 3D Model Ultra Librarian AMT103-V CAD Model

Description

The AMT103-V is an incremental encoder manufactured by CUI Devices.

  • Status: Limited
  • Mounting: Chassis (Motor)
  • Output Type: Quadrature with index (incremental)
  • Actuator Type: 2mm ~ 8mm open center
  • Pulses Per Revolution: Programmable
  • Supply Voltage: 3.6V ~ 5.5V
  • Switch: No
