Same model may have multiple batches, images only for reference.

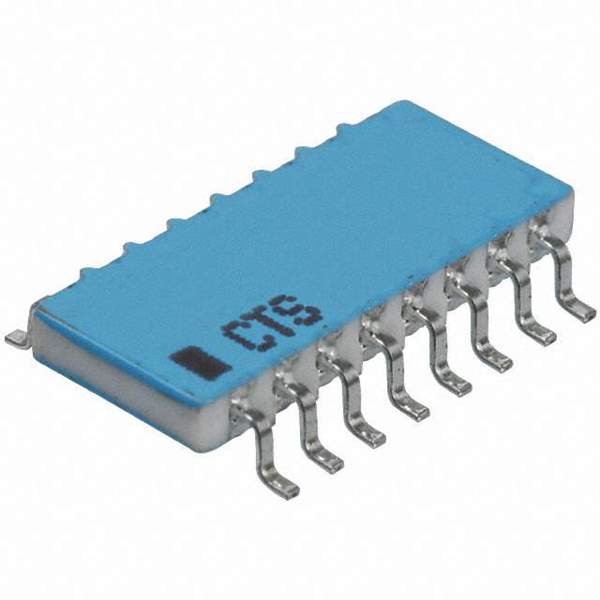

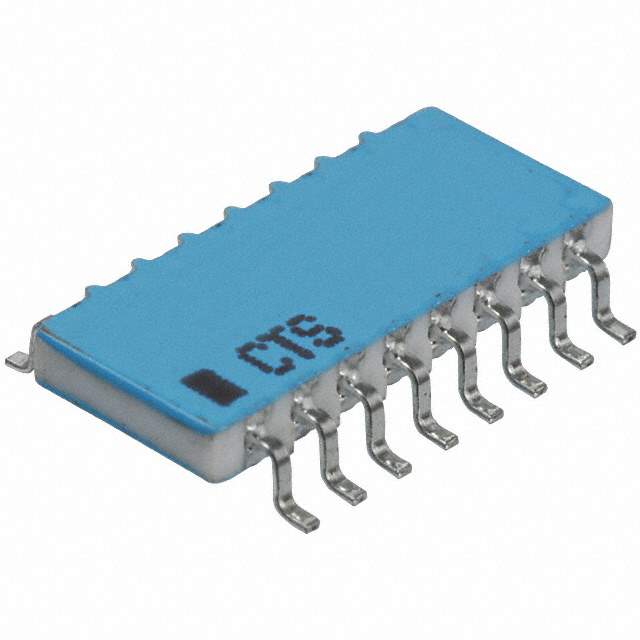

767165131A Real Image
Same model may have multiple batches, images only for reference.

767165131A

Part No 767165131A
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES NTWRK 28 RES MULT OHM 16SOIC
Datasheet
767165131A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Features 220, 330 Ohm ±2% 100mW Power Per Element Dual Terminator 28 Resistor Network/Array ±100ppm/°C 16-SOIC (0.220", 5.59mm Width)
Manufacturer CTS Resistor Products
Series 767
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 16-SOIC (0.220", 5.59mm Width)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Quantity per package 43
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858188-767165131A
Ultra Librarian 3D Model Ultra Librarian 767165131A CAD Model

Description

The 767 series is a resistor network/array that can operate in a temperature range of -55°C to 125°C from CTS Resistor Products.

  • Operating Temperature: -55°C to 125°C
  • Resistors: 28
  • Power Per Element: 100mW
  • Tolerance: ±2%
  • Resistance: 220 and 330 Ohm ±2%
  • Package: 16-SOIC (0.220", 5.59mm Width)
  • Package: Tube
  • Mounting: Surface
  • Category: Resistor
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Quantity Per Package: 43 units
  • Status: Obsolete
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS Code: 8533.21.0010
