Same model may have multiple batches, images only for reference.

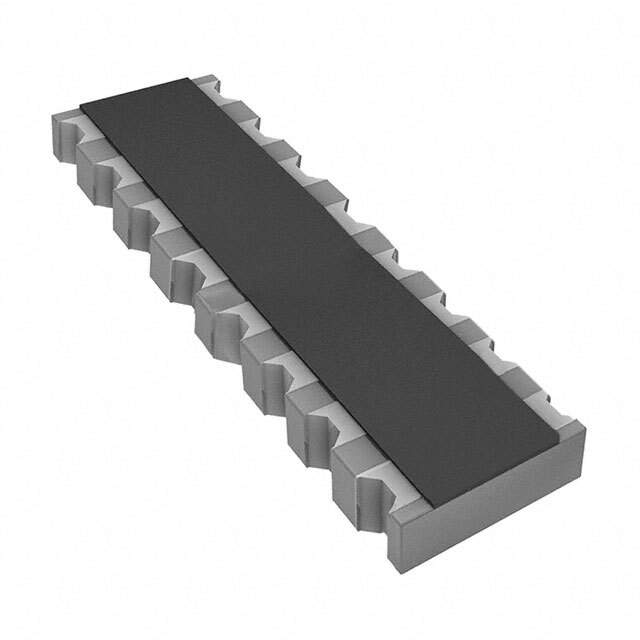

742C163104JP Real Image
Same model may have multiple batches, images only for reference.

742C163104JP

Part No 742C163104JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 100K OHM 2506 / 100k Ohm ±5% 62.5mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 2506, Concave, Long Side Terminals
Datasheet
742C163104JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 742
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 100k
Tolerance ±5%
Number of Resistors 8
Number of Pins 16
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2506, Concave, Long Side Terminals
Dimension 0.252" L x 0.063" W (6.40mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names 742C163104JPDKR,742C163104JPCT,742C163104JPTR
Standard Package 4,000
Win Source Part Number 1002380-742C163104JP
Ultra Librarian 3D Model Ultra Librarian 742C163104JP CAD Model

Description

The CTS Resistor Products 742C163104JP is a resistor network array that is designed for use in a variety of electronic applications. The manufacturer is CTS Resistor Products.

  • Resistors: eight isolated resistors
  • Resistance: 100 kohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200 ppm/°C
  • Package: 2506 concave package with long side terminals
  • Mounting: surface-mount technology
  • Power Dissipation: 62.5 mW per element
  • Temperature Range: -55°C to 125°C
