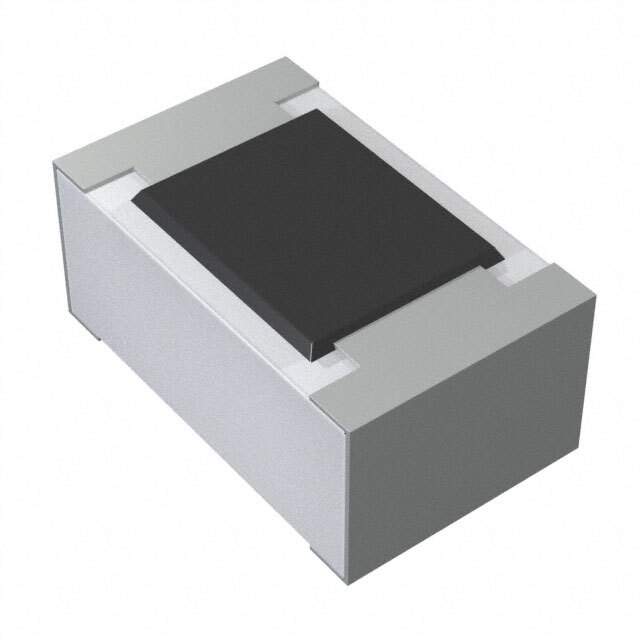

The 73L1R47J RES 0.47 is a chip resistor manufactured by CTS Resistor Products. It is a low-value resistor designed for current sensing and shunt applications. The '0.47' indicates a resistance value of 0.47 ohms. These low-value resistors are crucial for accurate current measurement in various electronic circuits.

Applications:

• Current sensing in power supplies
• Motor control circuits
• Battery management systems
• Overcurrent protection circuits
• High-frequency circuits requiring impedance matching

Features:

• Surface Mount Device (SMD)
• Low resistance value (0.47 ohms)
• High power handling capability
• Low inductance
• Excellent pulse load capability
• RoHS compliant

Benefits:

• Accurate current measurement
• Minimal impact on circuit performance due to low resistance
• Ability to withstand high current surges
• Reduced electromagnetic interference (EMI)
• Easy to integrate into automated assembly processes
• Environmentally friendly due to RoHS compliance

Additional Details:

The 'J' in the part number typically indicates the tolerance of the resistor (e.g., 5%). The specific package size (e.g., 1206, 0805) can be found in the datasheet. This resistor features a robust construction to handle high power dissipation. The low inductance design is essential for maintaining accuracy in high-frequency applications. CTS Resistor Products ensures high quality and reliability through rigorous testing and quality control processes. The resistor is designed to be compatible with standard reflow soldering techniques. Proper thermal management may be required depending on the specific application and power dissipation. Consult the datasheet for detailed electrical and thermal characteristics.
