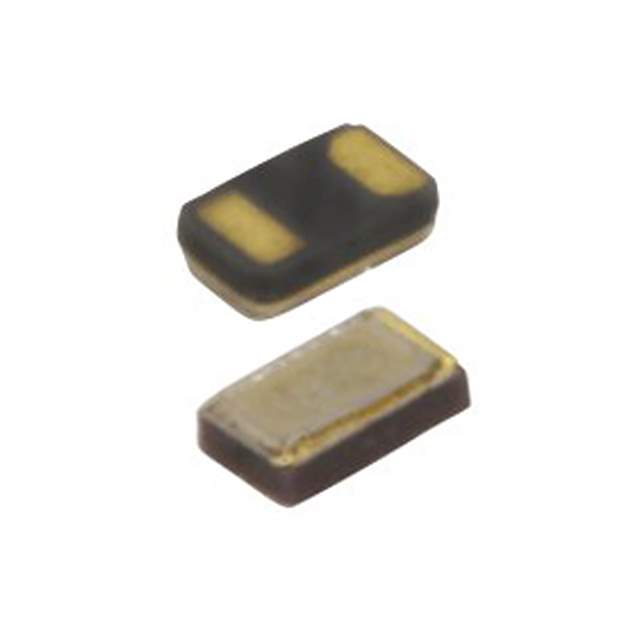

TF162P32K7680R Real Image
Same model may have multiple batches, images only for reference.

TF162P32K7680R

Part No TF162P32K7680R
Manufacturer CTS-Frequency Controls
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead
Datasheet
TF162P32K7680R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr CTS-Frequency Controls
Series TF16
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.063" L x 0.039" W (1.60mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
California Prop 65 Warning Information
Win Source Part Number 1339918-TF162P32K7680R
Ultra Librarian 3D Model Ultra Librarian TF162P32K7680R CAD Model

Description

The CTS-Frequency Controls TF16 series kHz Crystal (Tuning Fork) electronic component from CTS-Frequency Controls is a 32.768 kHz frequency crystal.

  • Frequency: 32.768 kHz
  • Mounting Type: Surface Mount Technology (SMT)
  • Packaging: Tape and Reel
  • Height: 0.020 inches (0.50mm)
  • Load Capacitance: 12.5pF
  • Frequency Tolerance: ±20ppm
  • Operating Mode: Fundamental
