Same model may have multiple batches, images only for reference.

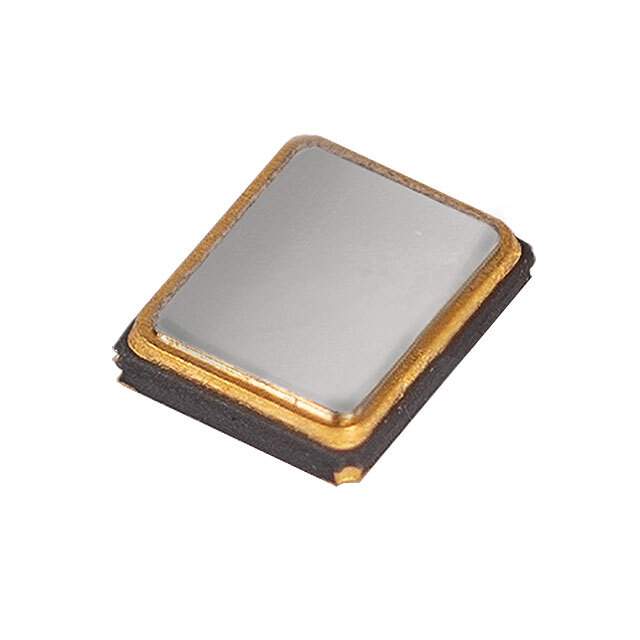

SA204240F35HAR Real Image
Same model may have multiple batches, images only for reference.

SA204240F35HAR

Part No SA204240F35HAR
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 10PF SMD  /  24 MHz ±30ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
SA204240F35HAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series SA204
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 110-SA204240F35HARCT,110-SA204240F35HARTR,110-SA204240F35HARDKR
Standard Package 3,000
Win Source Part Number 1038609-SA204240F35HAR
Ultra Librarian 3D Model Ultra Librarian SA204240F35HAR CAD Model

Description

The CTS-Frequency Controls SA204240F35HAR MHz crystal is a component designed for use in electronic circuits that require a stable and accurate frequency reference.

  • Frequency: 24 MHz
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Load Capacitance: 10pF
  • AEC-Q200 Qualified: Yes
  • Operating Temperature Range: -40°C to 125°C
