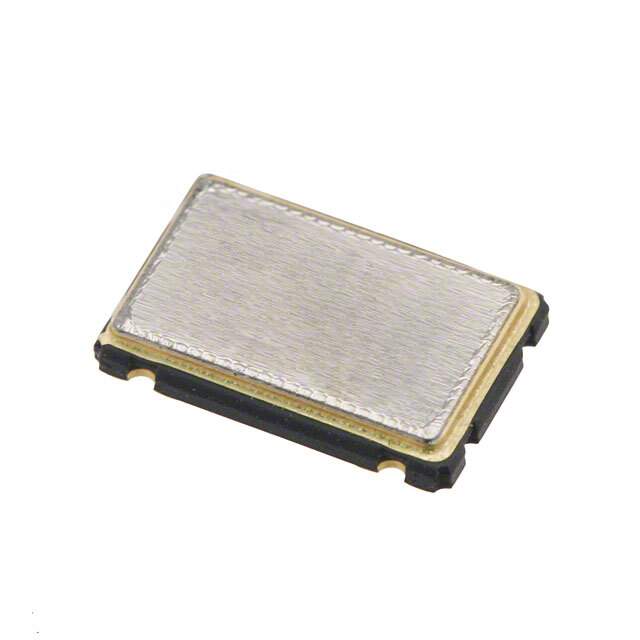

CB3-3I-9M830400 Real Image
Same model may have multiple batches, images only for reference.

CB3-3I-9M830400

Part No CB3-3I-9M830400
Manufacturer CTS-Frequency Controls
Catalog Oscillators
Description XTAL OSC XO 9.8304MHZ HCMOS TTL / 9.8304 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr CTS-Frequency Controls
Series CB3
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 9.8304 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 25mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1339515-CB3-3I-9M830400
Ultra Librarian 3D Model Ultra Librarian CB3-3I-9M830400 CAD Model

Description

The 1339515-CB3-3I-9M830400 is a 9.8304 MHz XO (Standard) oscillator from the CB3 series of CTS-Frequency Controls.

  • Package: Tape & Reel
  • Mounting: surface mount
  • Function: enable/disable
  • Output: HCMOS, TTL
  • Frequency Stability: ±50ppm
  • Supply Current (Max): 25mA
  • Voltage Supply: 5V
  • Package Type: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Oscillator Type: crystal
  • APR (Absolute Pull Range): None
  • REACH: unaffected
