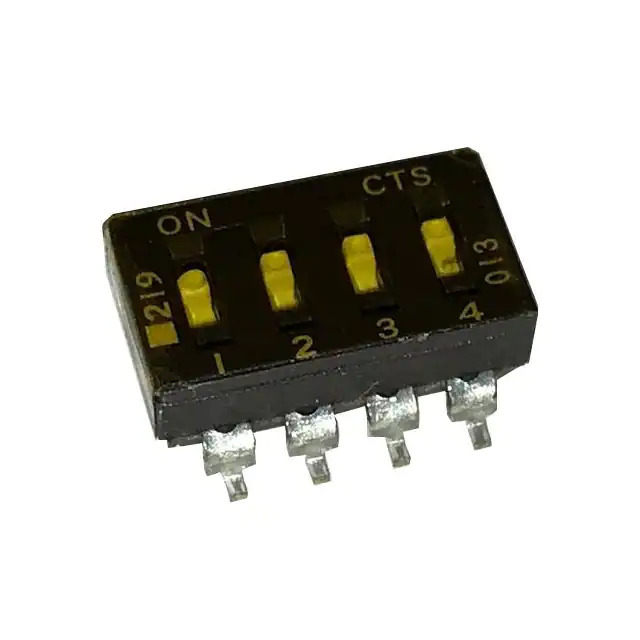

219-4LPSTP CTS Electrocomponents
Same model may have multiple batches, images only for reference.

219-4LPSTP

Part No 219-4LPSTP
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 20V
Datasheet
219-4LPSTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tube
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material -
Length 0.458" (11.63mm)
Mechanical Life -
Electrical Life 2,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376383-219-4LPSTP
Ultra Librarian 3D Model Ultra Librarian 219-4LPSTP CAD Model

Description

The 1376383-219-4LPSTP is a surface mount DIP switch from CTS Electrocomponents.

  • Series: 219
  • Mounting Type: Surface Mount
  • Circuit Configuration: SPST
  • Current Rating: 100mA
  • Voltage Rating: 20VDC
  • Pitch: 0.100" (2.54mm)
  • Actuator Type: Slide
  • Termination Style: Gull Wing
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles
  • Sealing: Epoxy Sealed, Tape Sealed
  • Height Above Board: 0.160" (4.06mm)
  • Length: 0.458" (11.63mm)
