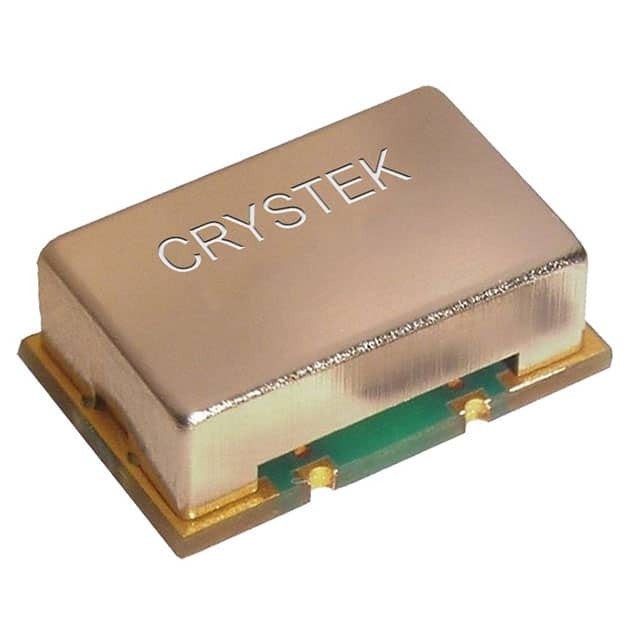

Same model may have multiple batches, images only for reference.
CCHD-950-20-104.000
Same model may have multiple batches, images only for reference.

CCHD-950-20-104.000

Part No CCHD-950-20-104.000
Manufacturer Crystek Corporation
Catalog Oscillators
Description XTAL OSC XO 104.0000MHZ HCMOS / 104 MHz XO (Standard) HCMOS Oscillator 3.3V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Crystek Corporation
Series CCHD-950
Package Strip
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 104 MHz
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 25mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.559" L x 0.360" W (14.20mm x 9.14mm)
Height - Seated (Max) 0.209" (5.30mm)
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 866034-CCHD-950-20-104.000
Ultra Librarian 3D Model Ultra Librarian CCHD-950-20-104.000 CAD Model

Description

The CCHD-950-20-104.000 is an oscillator from Crystek Corporation.

  • Series: CCHD-950
  • Type: Standard XO
  • Package: Strip
  • Size: 0.559" L x 0.360" W (14.20mm x 9.14mm)
  • Height: 0.209" (5.30mm) Seated
  • Frequency: 104 MHz
  • Output: HCMOS
  • Voltage: 3.3V
  • Current Supply: 25mA
  • Mounting: Surface Mountable
  • Package Type: 4-SMD, no lead
  • Temperature Range: 0°C to 70°C
  • Status: Active
  • REACH: Unaffected
