Same model may have multiple batches, images only for reference.

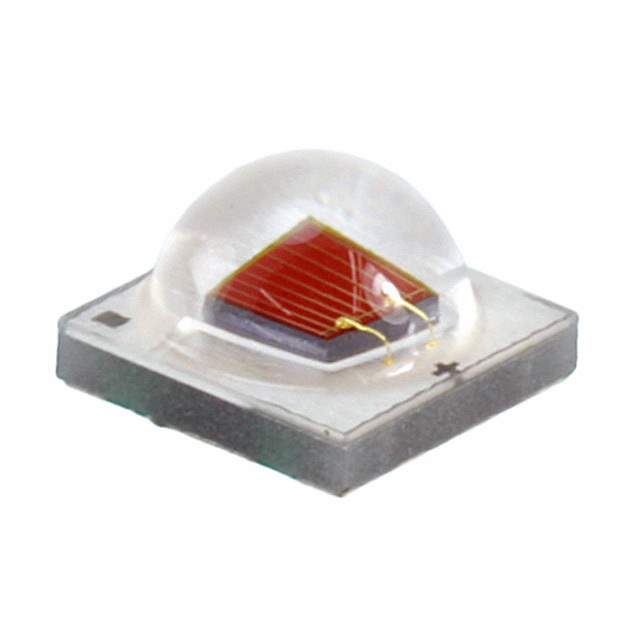

XPEBRD-L1-0000-00801 Real Image
Same model may have multiple batches, images only for reference.

XPEBRD-L1-0000-00801

Part No XPEBRD-L1-0000-00801
Manufacturer CreeLED, Inc.
Catalog LED Lighting - Color
Description LED XLAMP XPE2 RED 625NM SMD / LED Lighting Color series Red 625nm (620nm ~ 630nm) 1414 (3535 Metric)
Datasheet
XPEBRD-L1-0000-00801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr CreeLED, Inc.
Series XLamp® XP-E2
Package Tape & Reel
Color Red
Wavelength 625nm (620nm ~ 630nm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.2V
Lumens/Watt @ Current - Test 100 lm/W
Current - Max 1A
Luminous Flux @ Current/Temperature 77lm (74lm ~ 81lm)
Temperature - Test 25°C
Viewing Angle 130°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package SMD
Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.094" (2.39mm)
Thermal Resistance of Package 5°C/W
Base Product Number XPEBRD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XPEBRD-L1-0000-00801TR,XPEBRD-L1-0000-00801CT,XPEBRD-L1-0000-00801DKR
Standard Package 1,000
Win Source Part Number 1212920-XPEBRD-L1-0000-00801
Ultra Librarian 3D Model Ultra Librarian XPEBRD-L1-0000-00801 CAD Model

Description

The CreeLED, Inc. XLamp® XP-E2 is a red LED lighting component from CreeLED, Inc.

  • Package: Tape & Reel
  • Standard Package Quantity: 1,000
  • Maximum Current: 1A
  • Viewing Angle: 130°
  • Typical Forward Voltage: 2.2V
  • Test Current: 350mA
  • Wavelength: 625nm (620nm ~ 630nm)
  • Maximum Lumens/Watt @ Test Current: 100 lm/W
  • Thermal Resistance: 5°C/W
  • Operating Temperature: 25°C
  • Package/Case: 1414 (3535 Metric)
  • Supplier Device Package: SMD
  • Dimension: 0.136" L x 0.136" W (3.45mm x 3.45mm)
