Same model may have multiple batches, images only for reference.

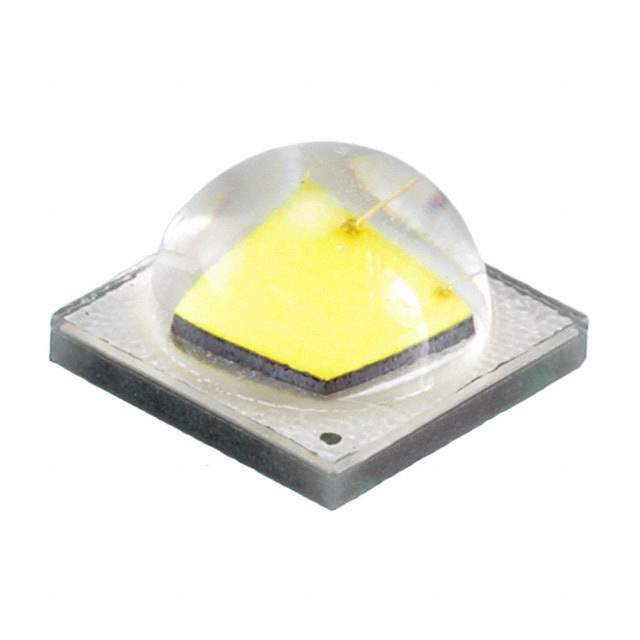

XMLBWT-00-0000-0000U20E1 Real Image
Same model may have multiple batches, images only for reference.

XMLBWT-00-0000-0000U20E1

Part No XMLBWT-00-0000-0000U20E1
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP COOL WHITE 6500K 2SMD / LED Lighting series White, Cool 6500K 2.72V 700mA 125° 2020 (5050 Metric)
Datasheet
XMLBWT-00-0000-0000U20E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XM-L2
Package Tape & Reel
Color White, Cool
CCT (K) 6500K
Flux @ 85°C, Current - Test 310lm (300lm ~ 320lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.72V
Lumens/Watt @ Current - Test 155 lm/W
Current - Max 3A
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.124" (3.15mm)
Thermal Resistance of Package 2.5°C/W
Base Product Number XMLBWT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XMLBWT0000000000U20E1,XMLBWT-00-0000-0000U20E1TR,XMLBWT-00-0000-0000U20E1CT,XMLBWT-00-0000-0000U20E1DKR
Standard Package 1,000
Win Source Part Number 1001628-XMLBWT-00-0000-0000U20E1
Ultra Librarian 3D Model Ultra Librarian XMLBWT-00-0000-0000U20E1 CAD Model

Description

The XLamp XM-L2 LED lighting component by CreeLED, Inc. is a high-performance optoelectronic product that delivers a cool white light color.

  • Mounting Type: Surface Mount (SMT)
  • Packaging: Tape and Reel
  • Package/Case: 2020 (5050 Metric)
  • Viewing Angle: 125 degrees
  • Height: 0.124 inches (Max)
  • Maximum Current: 3A
  • Forward Voltage: 2.72V
  • Thermal Resistance: 2.5 degrees Celsius per watt
  • CCT: 6500K
  • Flux: 310 lumens @ 85 degrees Celsius and a current test of 700mA
  • Luminous Efficacy: 155 lumens per watt @ the current test
  • REACH: Compliant
  • ECCN: EAR99
