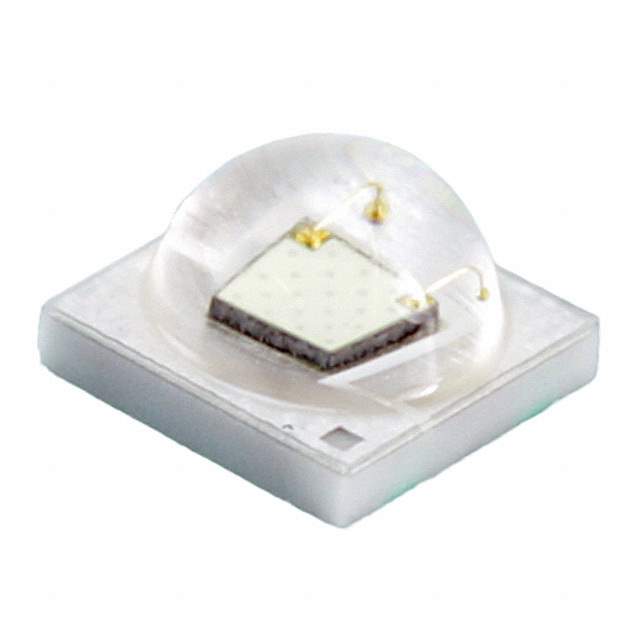

XPEBGR-L1-0000-00F02

Part No XPEBGR-L1-0000-00F02
Manufacturer CreeLED, Inc.
Catalog LED Lighting - Color
Description LED XLAMP XPE2 GREEN 525NM SMD / LED Lighting Color XLamp® XP-E2 Green 525nm (520nm ~ 530nm) 1414 (3535 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Manufacturer CreeLED, Inc.
Packaging Reel - TR
Color Green
Wavelength 525nm (520nm ~ 530nm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 1A
Luminous Flux @ Current/Temperature 126lm (122lm ~ 130lm)
Temperature - Test 25°C
Viewing Angle 135°
Mounting Surface Mount
Case / Package 1414 (3535 Metric)
Supplier Device Package SMD
Size / Dimension 0.136" L x 0.136" W (3.45mm x 3.45mm)
Height - Seated (Max) 0.094" (2.39mm)
Thermal Resistance of Package 11°C/W
Base Product Number XPEBGR
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number XPEBGR-L1-0000-00F02CT,XPEBGR-L1-0000-00F02-ND,XPEBGR-L1-0000-00F02TR,XPEBGR-L1-0000-00F02DKR
Standard Package 1,000
Win Source Part Number 1331976-XPEBGR-L1-0000-00F02
Ultra Librarian 3D Model Ultra Librarian XPEBGR-L1-0000-00F02 CAD Model

Description

The CreeLED XPEBGR-L1-0000-00F02 is a green LED lighting component that comes in a surface mount package.

  • Viewing Angle: 135 degrees
  • Forward Voltage: 2.85V
  • Maximum Current: 1A
  • Thermal Resistance: 11 degrees Celsius per watt
  • Test Current: 350mA
  • Luminous Flux: 126lm
  • Luminous Efficacy: 113lm/W
  • Wavelength: 525nm
  • Color Range: 520nm to 530nm
  • RoHS Compliant: Yes
  • Case/Package: 1414 (3535 metric)
