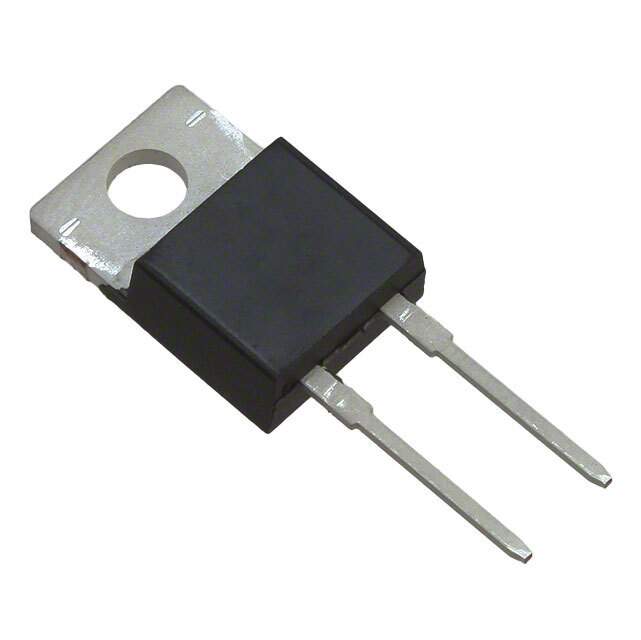

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Active
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200V
Current - Average Rectified (Io) 20A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 20A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 1200V
Capacitance @ Vr, F 1500pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 1027375-C4D20120A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name C4D20120A
Introduction Date September 02, 2015
ECCN ERA99
Country of Origin China, Philippines, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian C4D20120A CAD Model

Description

The Cree/Wolfspeed C4D20120A is a Silicon Carbide Schottky diode with a maximum DC reverse voltage of 1200V and an average rectified current rating of 20A.

  • Manufacturer: Cree/Wolfspeed
  • Maximum DC Reverse Voltage: 1200V
  • Average Rectified Current: 20A
  • Forward Voltage: 1.8V @ 20A
  • Reverse Recovery Time: 0ns
  • Packaging: TO-220-2
  • Speed Frequency: no recovery time greater than 500mA
  • Popularity: High
  • Supply and Demand: Balance
