Same model may have multiple batches, images only for reference.

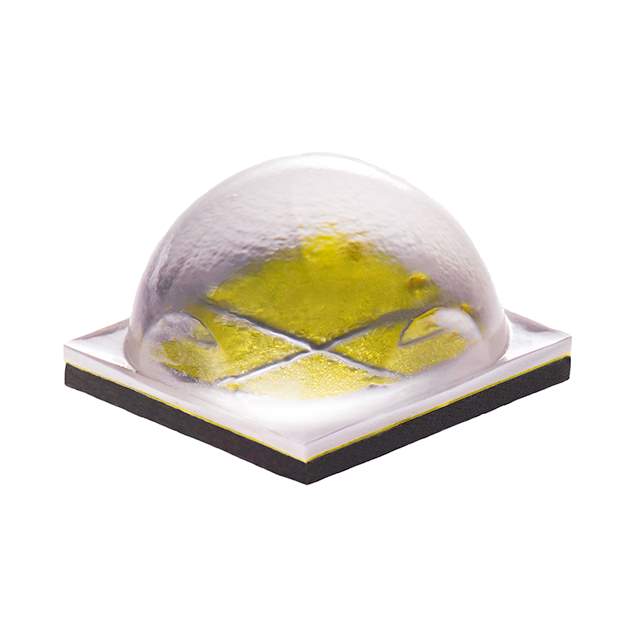

XHP70A-00-0000-0D0BN20E1 Real Image
Same model may have multiple batches, images only for reference.

XHP70A-00-0000-0D0BN20E1

Part No XHP70A-00-0000-0D0BN20E1
Manufacturer Cree Inc.
Catalog LED Lighting - White
Description XLamp XHP70 LEDs
Datasheet
XHP70A-00-0000-0D0BN20E1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series Xlamp XHP70
Packaging Reel - TR
Color White, Cool
CCT (K) 6500K
Flux @ 85°C, Current - Test 1650 lm (1590 lm ~ 1710 lm)
Current - Test 1.05A
Voltage - Forward (Vf) (Typ) 12V
Lumens/Watt @ Current - Test 131 lm/W
CRI (Color Rendering Index) 70
Current - Max 2.4A
Viewing Angle 120°
Mounting SMD
Package 2828 (7070 Metric)
Manufacturer Package SMD
Size 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Maximum) 0.182" (4.62mm)
Thermal Resistance of Package 0.9°C/W
Win Source Part Number 1282115-XHP70A-00-0000-0D0BN20E1
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Balance
Family Name XHP70A-00-0000-0D0BN20E1
Introduction Date December 17, 2014
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian XHP70A-00-0000-0D0BN20E1 CAD Model

Description

The 1282115-XHP70A-00-0000-0D0BN20E1 is a product that belongs to the Xlamp XHP70 series and is manufactured by Cree Inc.

  • Color: White, cool colored LED
  • Viewing Angle: 120°
  • Maximum Current: 2.4A
  • Forward Voltage: 12V
  • Size: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Mounting: Mounted in SMD
  • CCT: 6500K
  • Flux: 1650 lm (1590 lm ~ 1710 lm) @ 85°C, current - test
  • Lumens per Watt: 131 lm/W @ current - test
  • CRI (Color Rendering Index): 70
  • Thermal Resistance: 0.9°C/W
