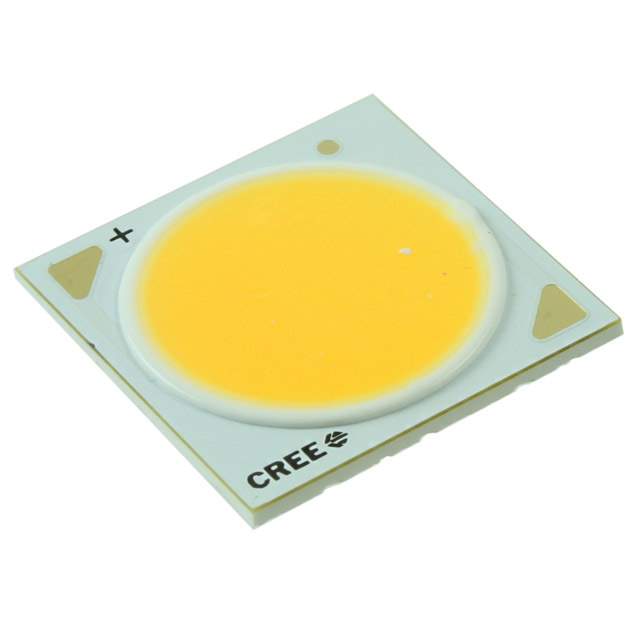

CXA2530-0000-000N0HT465F Real Image
Same model may have multiple batches, images only for reference.

CXA2530-0000-000N0HT465F

Part No CXA2530-0000-000N0HT465F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY XLAMP CXA2530 19MM WHT / Chip On Board LED Lighting Module
Datasheet
CXA2530-0000-000N0HT465F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA2530
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 6500K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 3560 lm (3440 lm ~ 3680 lm)
Current - Test 800mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 37V
Lumens/Watt @ Current - Test 120 lm/W
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 23.85mm L x 23.85mm W
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 771982-CXA2530-0000-000N0HT465F
Popularity Medium
Supply and Demand Status Balance
Family Name CXA2530
Introduction Date October 15, 2012
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CXA2530-0000-000N0HT465F CAD Model

Description

The Cree Inc. CXA2530-0000-000N0HT465F is a cool white chip-on-board LED designed for use in various lighting applications.

  • Maximum Current: 1.6A
  • Forward Voltage: 37V
  • Viewing Angle: 115 degrees
  • CCT: 6500K 4-Step MacAdam Ellipse
  • Luminous Flux: 3560 lm (3440 lm ~ 3680 lm) @ 85°C and 800mA
  • CRI: 80
  • Lumens/watt: 120 lm/W
  • Configuration: Square
  • Category: Optoelectronics
