Same model may have multiple batches, images only for reference.

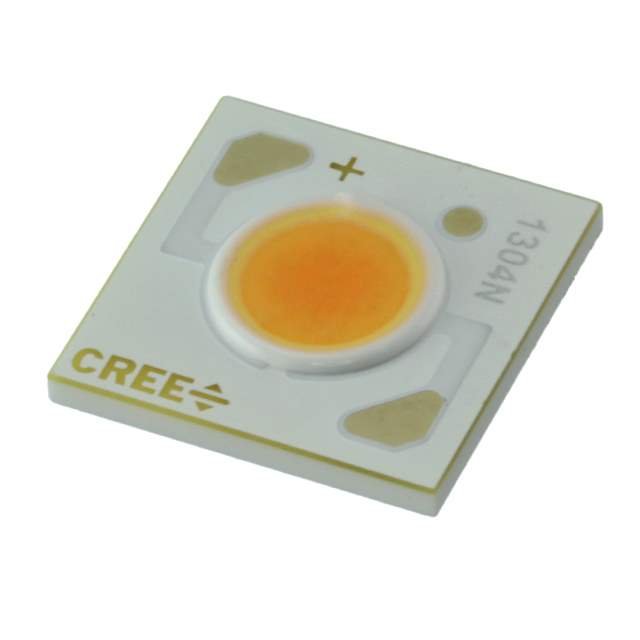

CXA1304-0000-000N0YA230G Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000N0YA230G

Part No CXA1304-0000-000N0YA230G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA1304 3000K WHITE SMD
Datasheet
CXA1304-0000-000N0YA230G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1304
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 343 lm (330 lm ~ 355 lm)
Current - Test 100mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 95 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 93
Viewing Angle 115°
Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Diameter
Lens Type Flat
Win Source Part Number 771957-CXA1304-0000-000N0YA230G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000N0YA230G CAD Model

Description

The Cree Inc. 771957-CXA1304-0000-000N0YA230G is a chip on board (COB) that belongs to the XLamp CXA1304 series.

  • Packaging: Tray
  • Configuration: Square
  • Color: White and Warm
  • Viewing Angle: 115°
  • Voltage Forward (Vf): 36V
  • Current Test: 100mA
  • Height: 1.70mm
  • Lens Type: Flat
  • CCT (K): 3000K 3-Step MacAdam Ellipse
  • Lumens/Watt: 95 lm/W @ current - test
  • CRI (Color Rendering Index): 93
  • Flux @ Current/Temperature - Test: 343 lm (330 lm ~ 355 lm)
  • Temperature Test: 85°C
  • LES Diameter: 6.00mm
  • Category: Optoelectronics
  • Popularity: Medium
