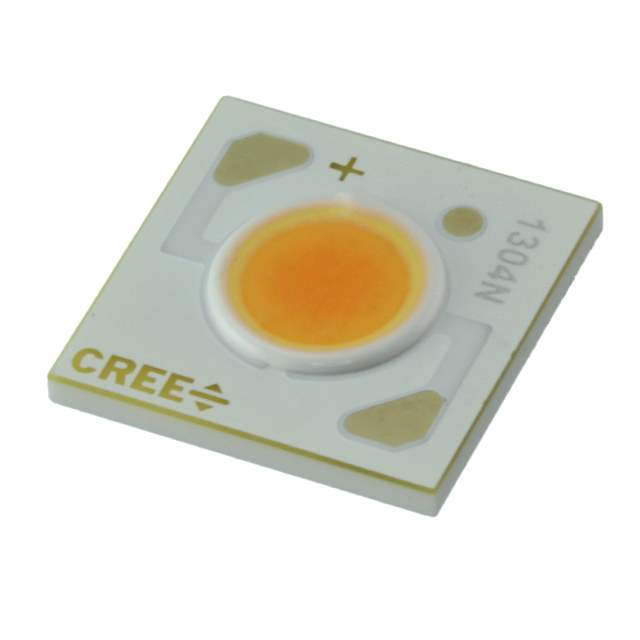

CXA1304-0000-000C0HC257F Real Image
Same model may have multiple batches, images only for reference.

CXA1304-0000-000C0HC257F

Part No CXA1304-0000-000C0HC257F
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description CXA1304 LED array expands Crees family of high flux, multi die arrays in a smaller
Datasheet
CXA1304-0000-000C0HC257F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Series XLamp CXA1304
Packaging Tray
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5700K 4-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 458 lm (440 lm ~ 475 lm)
Current - Test 400mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 9V
Lumens/Watt @ Current - Test 127 lm/W
Current - Max 1A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Size 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.00mm Diameter
Lens Type Flat
Win Source Part Number 1163754-CXA1304-0000-000C0HC257F
Manufacturer Homepage www.cree.com/
Popularity Medium
Supply and Demand Status Limited
Family Name CXA1304
Introduction Date November 07, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CXA1304-0000-000C0HC257F CAD Model

Description

The Cree Inc. XLamp CXA1304 is a chip on board (COB) LED with a square configuration and a white, cool color. Cree Inc. manufactures it.

  • Maximum Current: 1A
  • Typical Forward Voltage: 9V
  • Viewing Angle: 115 degrees
  • Lens Type: Flat
  • Color Temperature: 5700K
  • Color Rendering Index (CRI): 80
  • Luminous Efficacy: 127 lm/W @ 400mA
  • Flux: 458 lm @ 400mA
  • Light Emitting Surface (LES): 6.00mm diameter
  • Height: 1.70mm
  • Series: CXA1304
  • Package: Tray
  • Estimated End-of-Life (EOL) Date: 2024
