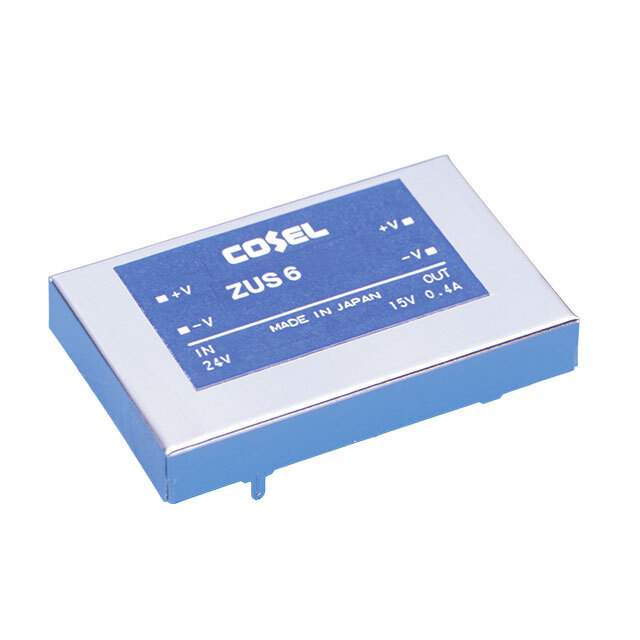

Same model may have multiple batches, images only for reference.

ZUS60515

Name: ZUS60515
Brand: Cosel USA, Inc.
SKU: 1029460
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUS60515
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V / Isolated Module DC DC Converter 1 Output 15V 400mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUS (6W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Current - Output (Max)	400mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	74%
Mounting Type	Through Hole
Package / Case	4-DIP Module
Dimension	1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1871
Standard Package	1
Win Source Part Number	1029460-ZUS60515
Ultra Librarian 3D Model	Ultra Librarian ZUS60515 CAD Model

Alternative Products

Description

The ZUS60515 is a 6W Isolated Module DC-DC Converter with OCP feature. Bold the product name (e.g., ZUS60515).

Application: ITE (Commercial)
Voltage Isolation: 500V
Output: Single
Maximum Output Current: 400mA
Input Voltage: 4.5V to 9V
Output Voltage: 15V
Efficiency: 74%
Mounting: Through hole
Package/Case: 4-DIP module
Temperature Range: -20°C to 71°C (with derating)
Dimension: 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm)
Status: Last time buy
Alternative Parts: SUS60515C, SUS62415B, ZUS61215, NCS6S1215C, NCM6S1215EC, and NDS6S2415C
