Same model may have multiple batches, images only for reference.

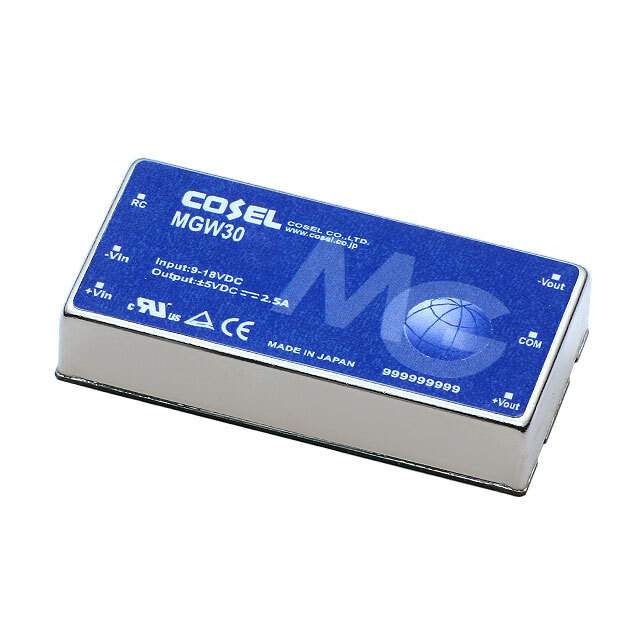

MGW301215 Real Image
Same model may have multiple batches, images only for reference.

MGW301215

Part No MGW301215
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V or 30V -15V 1A, 1A 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGW (30W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V or 30V
Voltage - Output 2 -15V
Current - Output (Max) 1A, 1A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Bridgeable, Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1349388-MGW301215
Ultra Librarian 3D Model Ultra Librarian MGW301215 CAD Model

Description

The Cosel USA MGW (30W) isolated module is a power supply board mount DC DC converter featuring bridgeable, remote on/off, OCP, and OVP features.

  • Features: Bridgeable, Remote On/Off, OCP, OVP
  • Package: Box
  • Size / Dimension: 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
  • Applications: ITE (Commercial)
  • Standard Package: 1
  • Voltage - Isolation: 1.5 kV
  • Number of Outputs: 2
  • Current - Output (Max): 1A, 1A
  • Voltage - Input: 9V ~ 18V
  • Voltage - Output 1: 15V or 30V
  • Voltage - Output 2: -15V
  • Efficiency: 90%
  • Mounting Type: Through Hole
  • Package / Case: 6-DIP Module
  • Operating Temperature: -40°C ~ 85°C
