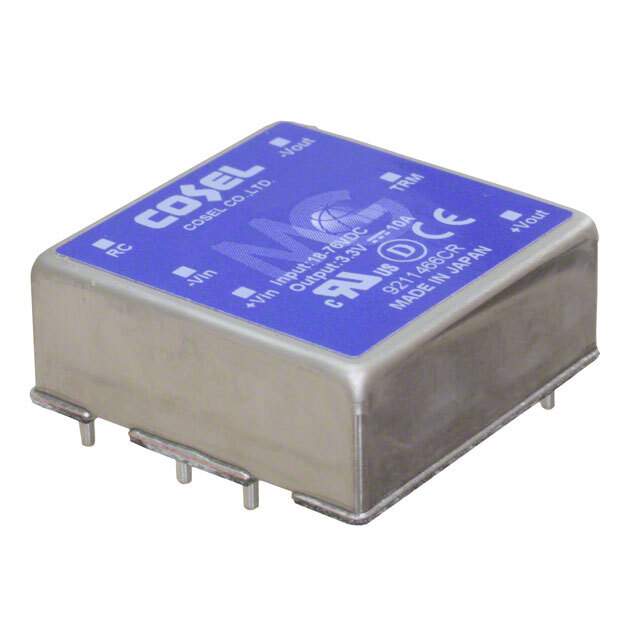

MGFW404812 Real Image
Same model may have multiple batches, images only for reference.

MGFW404812

Part No MGFW404812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 41W / Isolated Module DC DC Converter 2 Output 12V or 24V -12V 1.7A, 1.7A 18V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFW (40W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 76V
Voltage - Output 1 12V or 24V
Voltage - Output 2 -12V
Current - Output (Max) 1.7A, 1.7A
Power (Watts) 41 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Bridgeable
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CE, cURus, DEMKO
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350672-MGFW404812
Ultra Librarian 3D Model Ultra Librarian MGFW404812 CAD Model

Description

The Cosel USA MGFW404812 is a 40W isolated module DC-DC converter designed for power supplies board mount applications.

  • Manufacturer: Cosel USA
  • Power Rating: 40W
  • Application: Power Supplies Board Mount
  • Package Type: Tube
  • Mounting Type: Through Hole
  • Application: ITE (Commercial)
  • Bridgeable: Yes
  • Package: 1
  • Current - Output Max: 1.7A
  • Voltage - Input: 18V-76V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Length: 1.00 inch
  • Width: 1.00 inch
  • Height: 0.39 inches
  • Efficiency: 91%
  • Voltage - Isolation: 1.5 kV
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • HTSUS Code: 8504.40.9580
  • Approvals: CE, cURus, DEMKO
