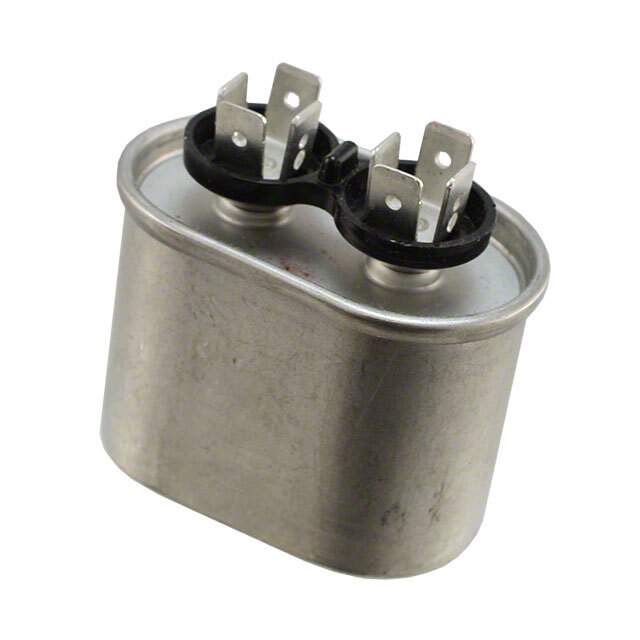

SFA66T1K156B-F Real Image
Same model may have multiple batches, images only for reference.

SFA66T1K156B-F

Part No SFA66T1K156B-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFA66T1K156B-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 660V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
Height - Seated (Max) 1.680" (42.67mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Standard Package 15
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1302632-SFA66T1K156B-F
Ultra Librarian 3D Model Ultra Librarian SFA66T1K156B-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SF series film capacitor is designed for motor run applications.

  • Capacitance: 1 µF
  • Voltage Rating: 660V AC
  • Material: Polypropylene (PP) and metallized dielectric material
  • Mounting: Chassis mount, which requires a holder/bracket
  • Package/Case: Radial can
  • Dimensions: 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
  • Operating Temperature Range: -40°C to 70°C
  • Packaging: Bulk packaging of 15 units
  • Height (Seated): 1.680" (42.67mm)
  • Lead Spacing: 0.810" (20.57mm)
  • ECCN: EAR99 compliant
  • REACH: Unaffected
