Same model may have multiple batches, images only for reference.

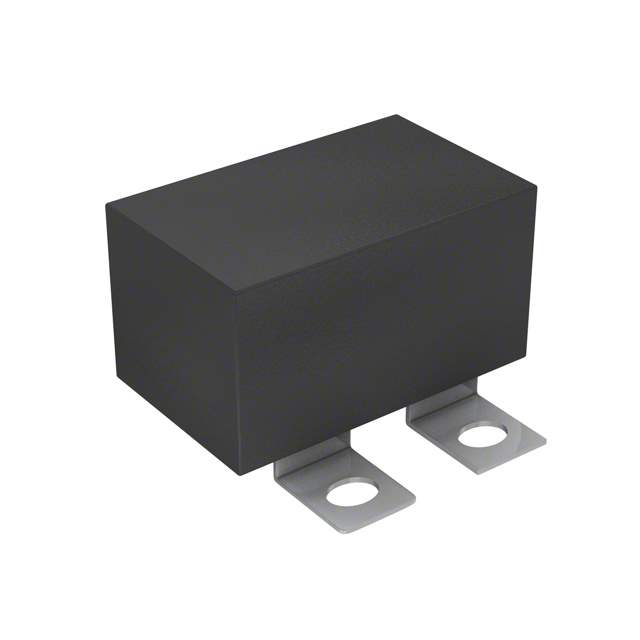

SCD474K202A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD474K202A3Z25-F

Part No SCD474K202A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD474K202A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.47 µF
Tolerance ±10%
Voltage Rating - AC 630V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 10 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.201" L x 1.350" W (55.90mm x 34.30mm)
Height - Seated (Max) 1.201" (30.50mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302671-SCD474K202A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD474K202A3Z25-F CAD Model

Description

This is a SCD series film capacitor from Cornell Dubilier Electronics (CDE) that comes with a capacitance of 0.47 µF and a tolerance of ±10%.

  • Capacitance: 0.47 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 630V
  • Voltage Rating (DC): 2000V (2kV)
  • Application: Snubber applications
  • Package Type: Rectangular box
  • Mounting Type: Chassis mounted
  • Termination: Screw terminals
  • Packaging: Bulk
  • Standard Package: 1 capacitor
  • Dielectric Material: Polypropylene (PP) and it is metallized
  • Operating Temperature Range: Between -55°C to 85°C
  • Dimensions: 2.201" L x 1.350" W (55.90mm x 34.30mm)
  • RoHS Compliant: Yes
