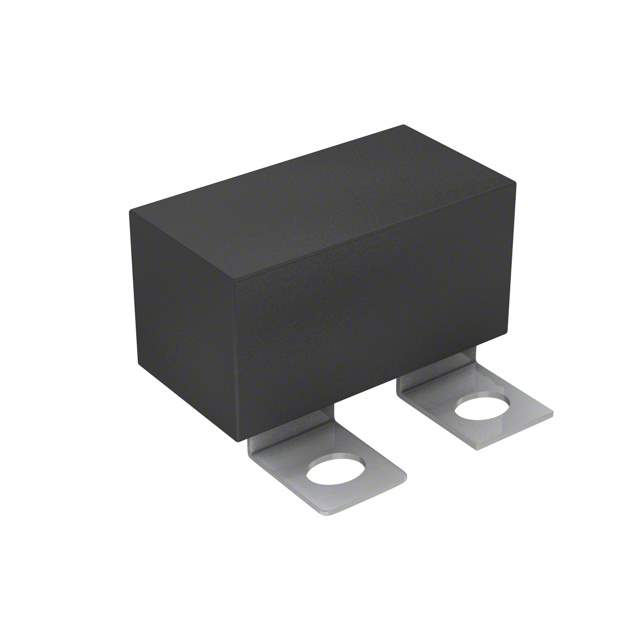

SCD224K122A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD224K122A3Z25-F

Part No SCD224K122A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 0.22UF 1.2KVDC SCREW / 0.22 µF Film Capacitor 580V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box
Datasheet
SCD224K122A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 580V
Voltage Rating - DC 1200V (1.2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 19 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 0.969" W (47.00mm x 24.60mm)
Height - Seated (Max) 0.949" (24.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Standard Package 1
Win Source Part Number 1222350-SCD224K122A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD224K122A3Z25-F CAD Model

Description

The SCD series of film capacitors is designed for snubber applications. The Cornell Dubilier Electronics (CDE) SCD224K122A3Z25-F is a rectangular box type capacitor with a capacitance of 0.22 µF, rated voltage of 1200V DC, and a tolerance of ±10%.

  • Application: Snubber
  • Type: Rectangular Box
  • Capacitance: 0.22 µF
  • Rated Voltage: 1200V DC
  • Tolerance: ±10%
  • Lead Spacing: 1.000" (25.40mm)
  • ESR: 19 mOhms
  • Dielectric Material: Polypropylene (PP), metallized
  • Lifetime: 2000 Hrs @ 85℃
  • Polarity: Polarized
  • Mounting Type: Chassis mount
  • Package/Case: Rectangular Box
  • Dimension: 1.850" L x 0.969" W (47.00mm x 24.60mm)
  • Operating Temperature Range: -55℃ to 85℃
  • ECCN: EAR99
  • HTSUS Code: 8532.25.0080
