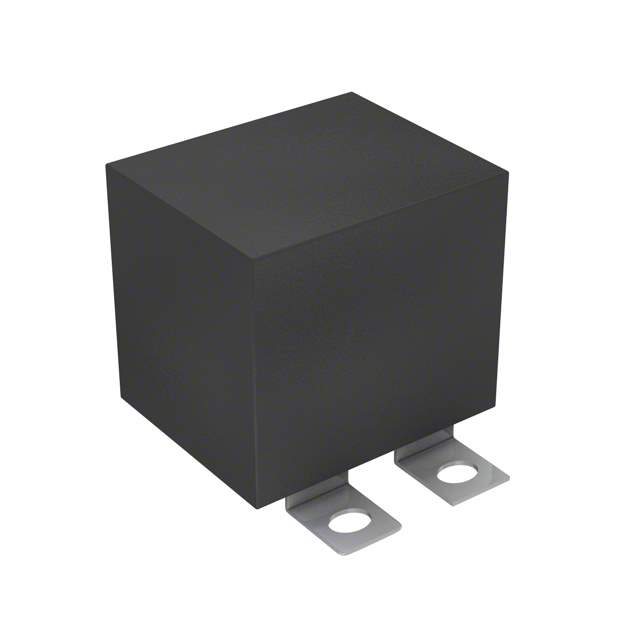

SCD205K122A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD205K122A3Z25-F

Part No SCD205K122A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 2UF 10% 1.2KVDC SCREW / 2 µF Film Capacitor 580V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box
Datasheet
SCD205K122A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 580V
Voltage Rating - DC 1200V (1.2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.224" L x 1.827" W (56.50mm x 46.40mm)
Height - Seated (Max) 1.976" (50.20mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Other Names 338-4161,SCD205K122A3Z25-F-ND
Standard Package 1
Win Source Part Number 989028-SCD205K122A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD205K122A3Z25-F CAD Model

Description

The SCD205K122A3Z25-F is a film capacitor manufactured by Cornell Dubilier Electronics (CDE).

  • Supply and Demand Status: Limited
  • Capacitance: 2μF
  • Tolerance: ±10%
  • Voltage Rating: 580V AC, 1200V DC
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Mounting Type: Chassis Mount
  • Package: Rectangular Box
  • Application: Snubber Applications
