Same model may have multiple batches, images only for reference.

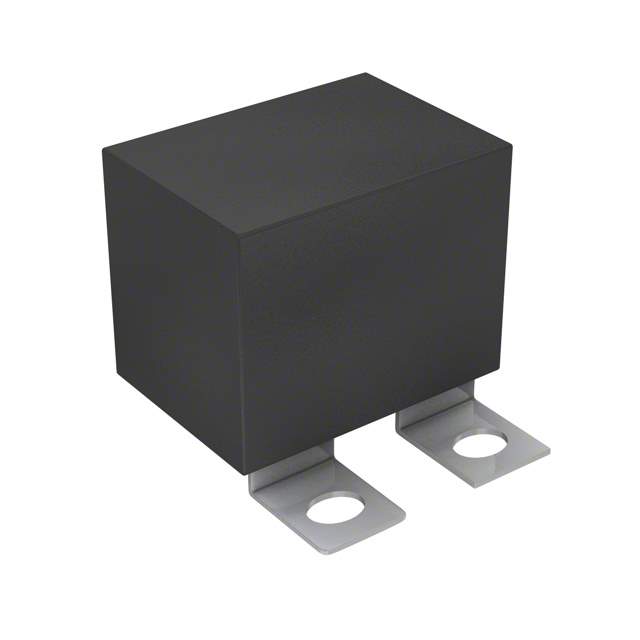

SCD155K102A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD155K102A3Z25-F

Part No SCD155K102A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD155K102A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 1.5 µF
Tolerance ±10%
Voltage Rating - AC 300V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 4 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.776" L x 1.272" W (45.10mm x 32.30mm)
Height - Seated (Max) 1.402" (35.60mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302664-SCD155K102A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD155K102A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series capacitor is an ideal choice for snubber applications.

  • Capacitance: 1.5 µF
  • Voltage Rating: 300V AC and 1000V DC
  • Dielectric Material: Polypropylene (PP) and metallized
  • Termination: Screw terminals
  • Mounting Type: Chassis mounting
  • Package: Rectangular box
  • Lead Spacing: 1.000" (25.40mm)
  • Height (Seated): 1.402" (35.60mm)
  • Temperature Range: -55°C to 85°C
  • Tolerance: ±10%
  • Packaging: Bulk
  • Standard Package: 1
