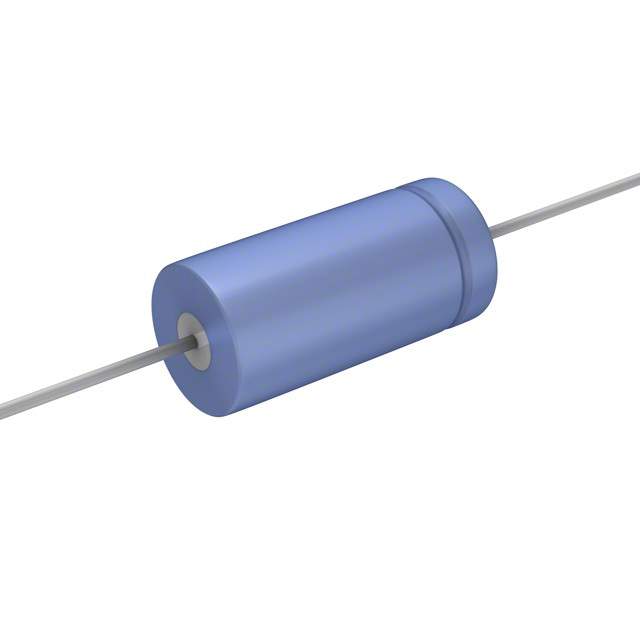

NLW10-25 Real Image
Same model may have multiple batches, images only for reference.

NLW10-25

Part No NLW10-25
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 25V AXIAL
Datasheet
NLW10-25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 10μF
Tolerance -10%, +75%
Voltage Rating 25V
ESR 26.5 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 47mA @ 120Hz
Ripple Current - High Frequency 54.05mA @ 10kHz
Mounting Through Hole
Dimension Axial, Can
Win Source Part Number 1037327-NLW10-25
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLW10-25 CAD Model

Description

This electronic component is a product of Cornell Dubilier Electronics (CDE).

  • Type: General-Purpose Capacitor
  • Voltage Rating: 25V
  • Capacitance: 10μF
  • Tolerance: -10%, +75%
  • Lifetime: 1000 Hrs @ 105°C
  • Operating Temperature: -40°C to 105°C
  • Mounting: Through-Hole
  • Ripple Current: 47mA @ 120Hz
  • Ripple Current: 54.05mA @ 10kHz
