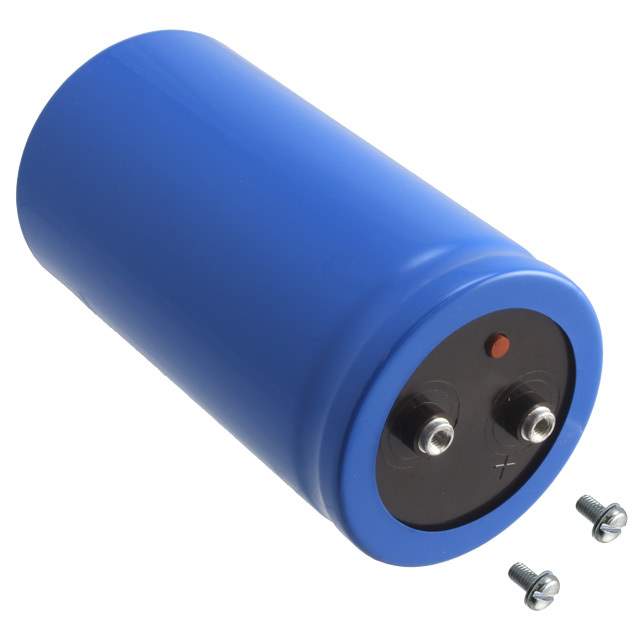

CGS152T450X5C Real Image
Same model may have multiple batches, images only for reference.

CGS152T450X5C

Part No CGS152T450X5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 450V SCREW / 1500 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 57mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet
CGS152T450X5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CGS
Package Bulk
Capacitance 1500 µF
Tolerance -10%, +50%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 57mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 8.1 A @ 120 Hz
Ripple Current @ High Frequency 12.15 A @ 10 kHz
Dimension 3.000" Dia (76.20mm)
Height - Seated (Max) 5.125" (130.18mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0085
Other Names 338-1435,CGS152T450X5C-ND
Standard Package 1
Win Source Part Number 1089643-CGS152T450X5C
Ultra Librarian 3D Model Ultra Librarian CGS152T450X5C CAD Model

Description

The CGS152T450X5C is a screw terminal type aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitance: 1500 µF
  • Voltage Rating: 450 V
  • Tolerance: -10%, +50%
  • ESR: 57 mOhm @ 120 Hz
  • Height: 130.18mm
  • Diameter: 76.20mm
  • Series: CGS
  • Design: Polarized
  • Mounting: Chassis
  • Ideal for: General-Purpose Applications
  • Ripple Current: 8.1 A @ 120 Hz and 12.15 A @ 10 kHz
  • Lifetime: 2000 hours @ 85°C
  • ECCN: EAR99
