Same model may have multiple batches, images only for reference.

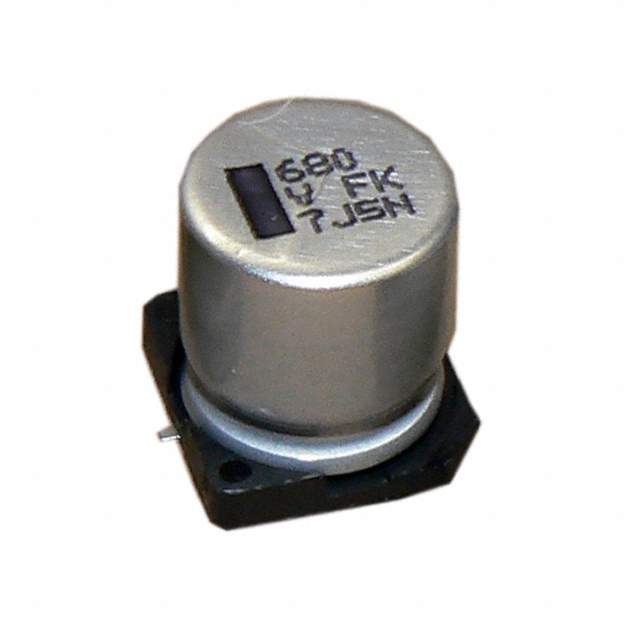

AFK477M25G24T-F Real Image
Same model may have multiple batches, images only for reference.

AFK477M25G24T-F

Part No AFK477M25G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 80mOhm @ 100kHz 2000 Hrs @ 105°C
Datasheet
AFK477M25G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AFK
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 637.5 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.473" W (10.30mm x 12.00mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 338-2208-6,338-2208-2,338-2208-1,AFK477M25G24TF,AFK477M25G24T-F-ND
Standard Package 500
Win Source Part Number 1118101-AFK477M25G24T-F
Ultra Librarian 3D Model Ultra Librarian AFK477M25G24T-F CAD Model

Description

This electronic component is a capacitor from the AFK series.

  • Win Source Part Number: 1118101-AFK477M25G24T-F
  • Applications: Automotive, bypass, and decoupling
  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Supply and Demand Status: Unlimited
  • Lifetime: 2000 hours @ 105°C
