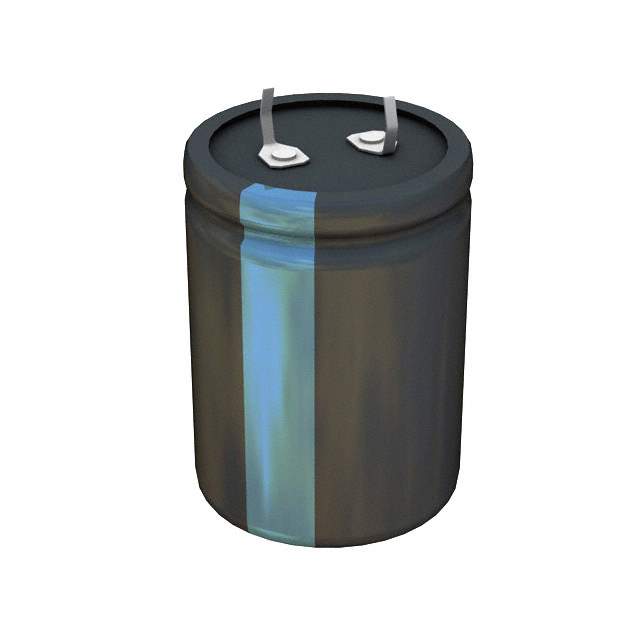

380LX103M063A042 Real Image
Same model may have multiple batches, images only for reference.

380LX103M063A042

Part No 380LX103M063A042
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 20% 63V SNAP / 10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 33mOhm @ 120Hz 3000 Hrs @ 85°C
Datasheet
380LX103M063A042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 380LX
Package Bulk
Capacitance 10000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 33mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.5 A @ 120 Hz
Ripple Current @ High Frequency 7.5 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 2266-380LX103M063A042,380LX103M063A042+M,380LX103M063A042-ND,338-2684
Standard Package 80
Win Source Part Number 998887-380LX103M063A042
Ultra Librarian 3D Model Ultra Librarian 380LX103M063A042 CAD Model

Description

The 380LX103M063A042 is an aluminum electrolytic capacitor with a capacitance of 10000 µF and a voltage rating of 63V from Cornell Dubilier Electronics (CDE).

  • Capacitance: 10000 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR: 33mOhm @ 120Hz
  • Ripple Current: 6.5 A @ 120 Hz and 7.5 A @ 20 kHz
  • Package: Radial, can - snap-in
  • Mounting: Through-hole
  • Applications: General purpose
  • Height: 1.654" (42.00mm)
  • RoHS Compliant: Yes
  • Operating Temperature Range: -40°C ~ 85°C
