Same model may have multiple batches, images only for reference.

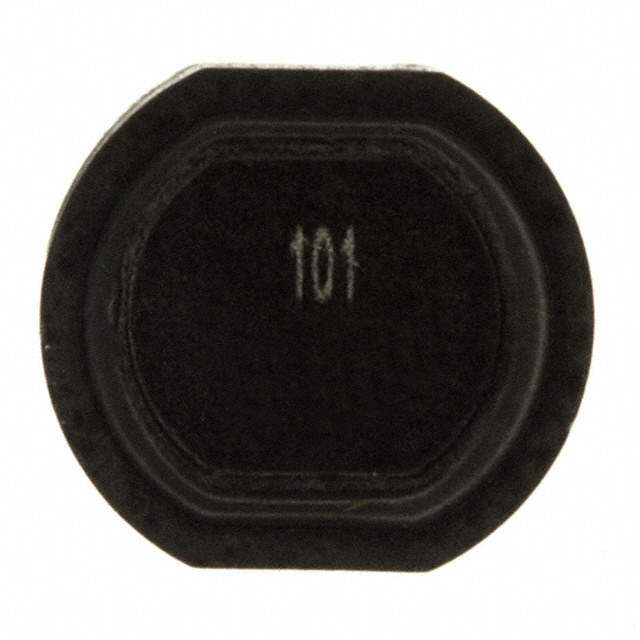

LDS0705-101M-R Real Image
Same model may have multiple batches, images only for reference.

LDS0705-101M-R

Part No LDS0705-101M-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 808MA 357 MOHM / Shielded metalized drum core power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 808mA
Current - Saturation 800mA
Shielding Shielded
DC Resistance (DCR) 357mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809412-LDS0705-101M-R
Ultra Librarian 3D Model Ultra Librarian LDS0705-101M-R CAD Model

Description

The Eaton-LDS0705-101M-R, manufactured by Eaton - Electronics Division, is an obsolete wirewound inductor.

  • Win Source Part Number: 809412-LDS0705-101M-R
  • Current Rating: 808mA
  • Inductance: 100μH
  • Tolerance: ±20%
  • DC Resistance: 357mOhm
  • Shielded: Yes
  • Height: 0.197 inches
