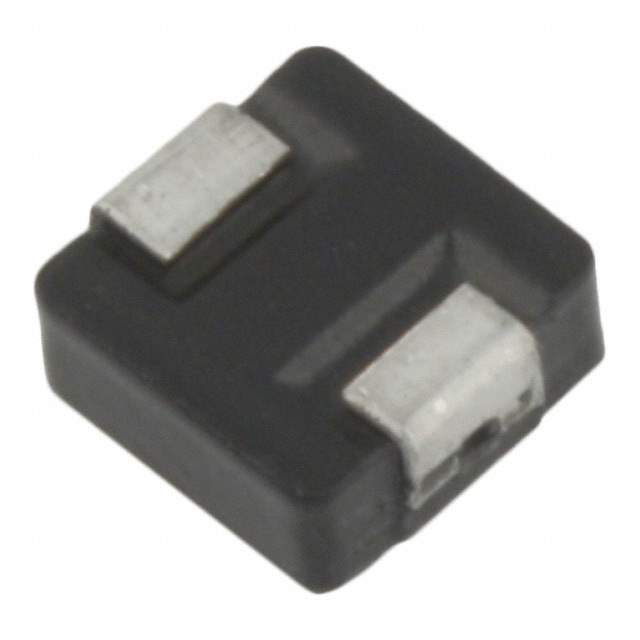

HCM0703-R82-R Real Image
Same model may have multiple batches, images only for reference.

HCM0703-R82-R

Part No HCM0703-R82-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 820NH 13A 8 MOHM SMD / High Current, Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 820nH
Tolerance ±20%
Current Rating (Amps) 13A
Current - Saturation 24A
Shielding Shielded
DC Resistance (DCR) 8mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807896-HCM0703-R82-R
Ultra Librarian 3D Model Ultra Librarian HCM0703-R82-R CAD Model

Description

The Eaton-Electronics-Division 807896-HCM0703-R82-R is a wirewound type shielded inductor that has an inductance of 820nH with a tolerance of ±20 percent.

  • Inductance: 820nH
  • Tolerance: ±20%
  • Mounting Style: Surface Mount
  • Maximum Current Saturation: 24A
  • DC Resistance (DCR): 8mOhm Max
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Balanced
