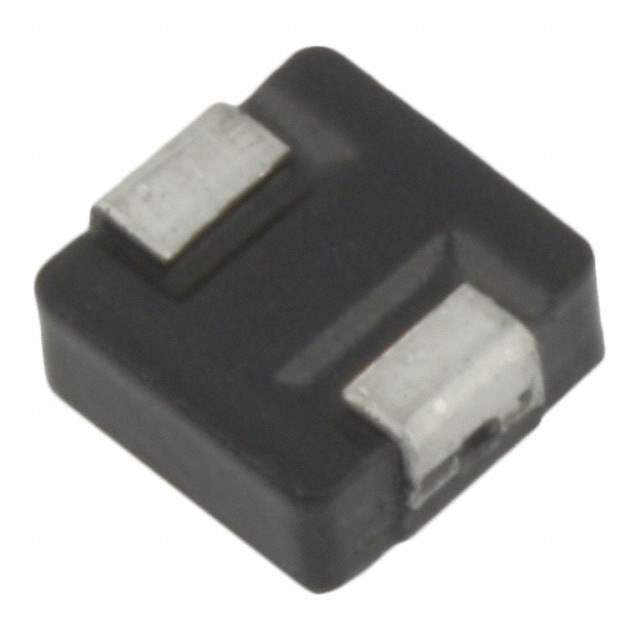

The Cooper Bussmann HCM0703-1R0-S is a surface-mount power inductor designed for various power supply and filtering applications. It provides a compact and efficient solution for energy storage and filtering in electronic circuits. Its shielded construction minimizes electromagnetic interference (EMI).

Applications

• DC-DC converters.
• Power supplies.
• EMI filtering.
• Voltage regulators.
• Portable electronic devices.

Features

• Surface mount design.
• Shielded construction for low EMI.
• High current capability.
• Low DC resistance (DCR).
• Compact size.

Benefits

• Reduces EMI and noise in electronic circuits.
• Provides efficient energy storage in power supplies.
• Enables high current operation in compact designs.
• Minimizes power losses due to its low DCR.
• Simplifies board layout with its surface mount design.

Additional Details

The HCM0703-1R0-S has an inductance of 1.0 µH (microhenry). The 'HCM0703' indicates the package size, which is typically 7mm x 7mm. The shielded construction is crucial for preventing interference with nearby components. The low DC resistance minimizes power loss in the inductor, improving overall efficiency. The saturation current is an important parameter, indicating the current level at which the inductance starts to drop significantly.

Always refer to the Cooper Bussmann datasheet for the HCM0703-1R0-S for complete specifications, including inductance tolerance, saturation current, DC resistance, and operating temperature range. This information is essential for proper circuit design and application.
