Same model may have multiple batches, images only for reference.

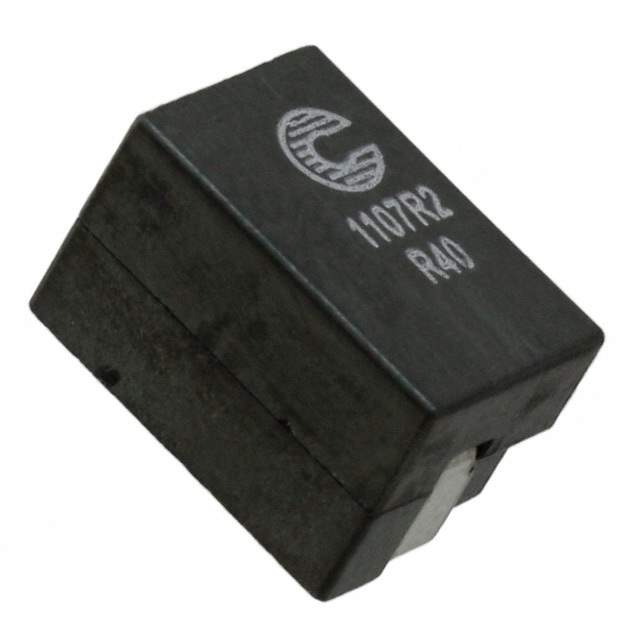

FP1107R2-R40-R Real Image
Same model may have multiple batches, images only for reference.

FP1107R2-R40-R

Part No FP1107R2-R40-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current, High Frequency, Power Inductors | FIXED IND 400NH 42A 0.47 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 400nH
Tolerance ±10%
Current Rating (Amps) 42A
Current - Saturation 25A
Shielding Unshielded
DC Resistance (DCR) 0.47mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.433" L x 0.283" W (11.00mm x 7.20mm)
Height - Seated (Maximum) 0.283" (7.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1175076-FP1107R2-R40-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FP1107R2-R40-R CAD Model

Description

The Eaton - Electronics Division 1175076-FP1107R2-R40-R is a reel-mounted wirewound inductor that features an unshielded design.

  • Design: Unshielded
  • Core Material: Ferrite
  • Inductance: 400nH
  • Tolerance: ±10%
  • DC Resistance (DCR): 0.47mOhm
  • Current Saturation: 25A
  • Category: Inductors, Coils, Chokes
  • Popularity: Medium
  • Temperature Range: -40°C ~ 125°C
  • Height: 0.283" (7.20mm)
  • Parts Dimension: 0.433" L x 0.283" W (11.00mm x 7.20mm)
  • Current Rating: 42A
  • Inductance Frequency-Test: 100kHz
