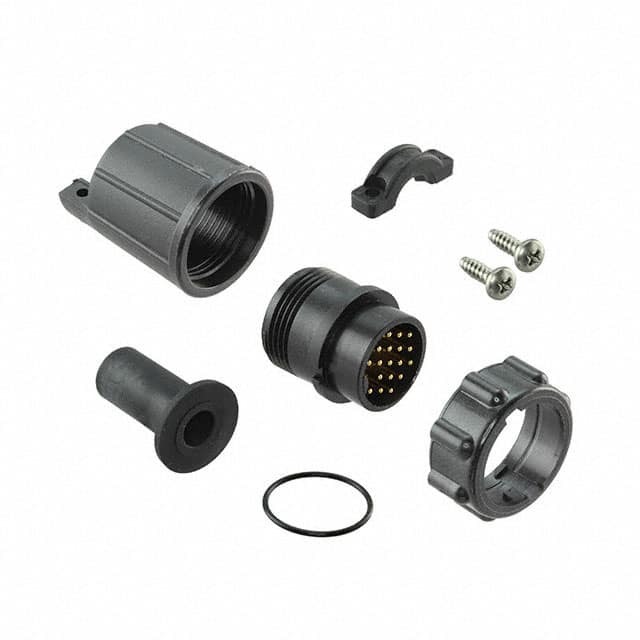

Same model may have multiple batches, images only for reference.
13282-18PG-321
Same model may have multiple batches, images only for reference.

13282-18PG-321

Part No 13282-18PG-321
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 18P GOLD SLDR CUP
Datasheet
13282-18PG-321 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conxall/Switchcraft
Series Maxi-Con-X®
Package Bulk
Product Status Active
Connector Type Plug, Male Pins
Number of Positions 18
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection Weathertight
Features Backshell, Cable Clamp
Shielding Unshielded
Voltage Rating 600V
Cable Opening 0.210" ~ 0.250" (5.33mm ~ 6.35mm)
Temperature Range - Operating -40°C ~ 115°C
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Brass
Base Product Number 13282-18P
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 848304-13282-18PG-321
Ultra Librarian 3D Model Ultra Librarian 13282-18PG-321 CAD Model

Description

The 848304-13282-18PG-321 is a circular connector assembly from the Maxi-Con-X® series by Conxall/Switchcraft.

  • Connector Type: Plug, Male Pins
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Ingress Protection: Weathertight
  • Shielding: Unshielded
  • Material Flammability Rating: -
  • Packaging: Bulk
  • Standard Package: 100 Pieces
  • Cable Opening: 0.210" ~ 0.250" (5.33mm ~ 6.35mm)
  • Mounting Type: Free Hanging (In-Line)
  • Shell Material: Polyamide (PA), Nylon
  • Product Status: Active
