Same model may have multiple batches, images only for reference.

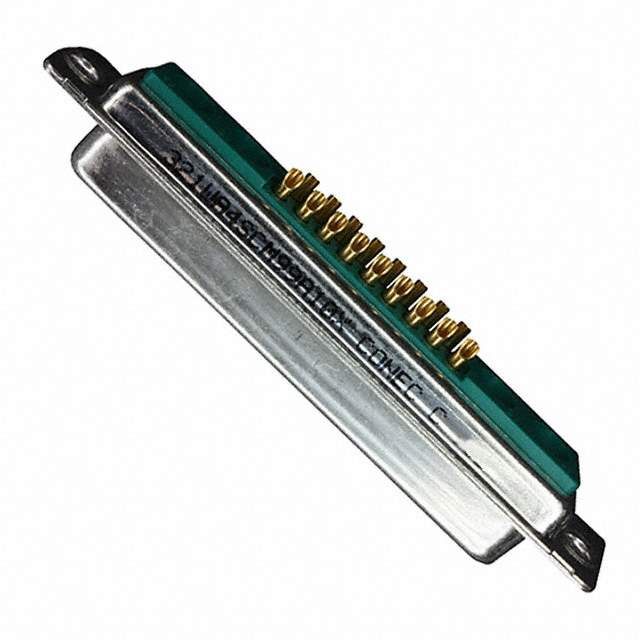

321WA4SCM99A10X Real Image
Same model may have multiple batches, images only for reference.

321WA4SCM99A10X

Part No 321WA4SCM99A10X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 21POS SLDR CUP / 21 (17 + 4 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Package Tray
Connector Style D-Sub, Combo
Connector Type Receptacle, Female Sockets
Number of Positions 21 (17 + 4 Coax or Power)
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 4 (DC, C) - 21WA4
Contact Type Signal and Coax or Power (Not Included)
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color Green
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 321WA4S
Standard Package 30
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1340243-321WA4SCM99A10X
Ultra Librarian 3D Model Ultra Librarian 321WA4SCM99A10X CAD Model

Description

This D-Sub connector assembly is a perfect fit for your electronic devices.

  • Color: Green
  • Connector Type: Receptacle, Female Sockets
  • Number of Positions: 21
  • Positions: 17 Signal, 4 Coax or Power
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.762µm)
  • Connector Style: D-Sub Combo
  • Number of Rows: 2
  • Shell Material, Finish: Steel, Tin Plated
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Layout: 4 (DC, C) - 21WA4
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Free Hanging (In-Line)
  • Flange Feature: Housing/Shell (Unthreaded)
  • Current Rating: 5A
