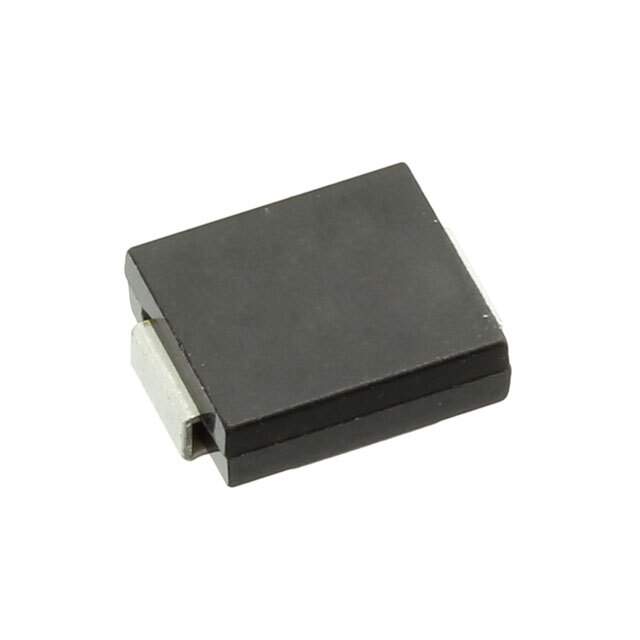

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Capacitance @ Vr, F 450pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS34
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-SS34C-HFDKR,641-SS34C-HFTR,641-SS34C-HFCT
Standard Package 3,000
Win Source Part Number 1096109-SS34C-HF
Ultra Librarian 3D Model Ultra Librarian SS34C-HF CAD Model

Description

The Comchip Technology SS34C-HF is a Schottky diode designed for rectification purposes. The diode type is fast recovery with a speed of <500ns and >200mA (Io). The package is tape & reel, and the standard package is 3,000. The diode has a maximum reverse voltage of 40V and an average rectified current of 3A. The forward voltage is 550mV at 3A, and the reverse leakage current is 500µA at 40V. The capacitance is 450pF at 4V and 1MHz. The operating temperature range is -55°C to 150°C. The package/case is DO-214AB (SMC), and the supplier device package is DO-214AB (SMC). The Comchip Technology SS34C-HF is an active product and has an ECCN of EAR99. The HTSUS code for this product is 8541.10.0080.
