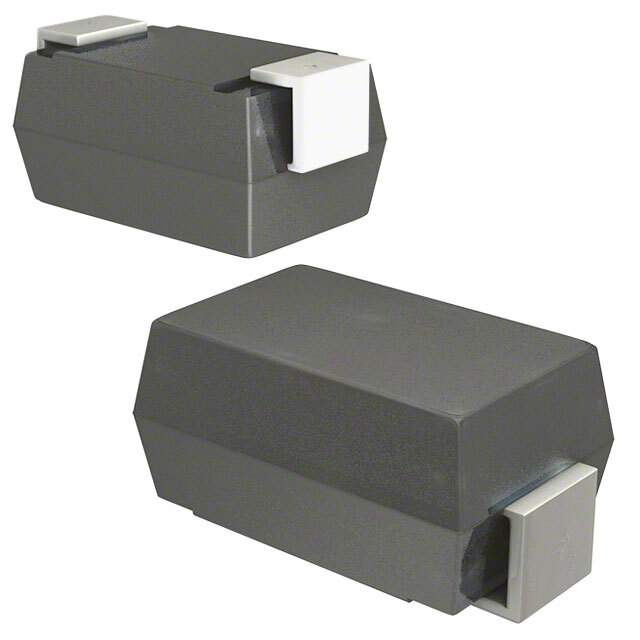

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number ES1J
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-ES1J-HFCT,641-ES1J-HFTR,641-ES1J-HFDKR
Standard Package 5,000
Win Source Part Number 1129914-ES1J-HF
Ultra Librarian 3D Model Ultra Librarian ES1J-HF CAD Model

Description

The 1129914-ES1J-HF is a fast recovery diode with a maximum reverse voltage of 600V and a forward voltage of 1.7V @ 1A.

  • Maximum Reverse Voltage: 600V
  • Forward Voltage: 1.7V @ 1A
  • Current Rating: 1A
  • Reverse Recovery Time: 35ns
  • Package: DO-214AC (SMA)
  • Mounting: Surface Mount
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: Comchip Technology
  • RoHS Compliant: Yes
  • Common Usage: Rectifier circuits and power supplies
