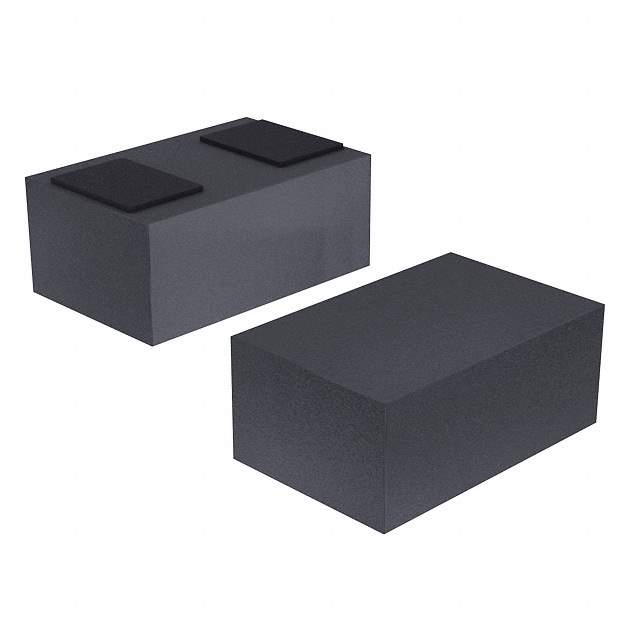

CPDQR5V0C-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR5V0C-HF

Part No CPDQR5V0C-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 14.5VC 0402
Datasheet
CPDQR5V0C-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.1V
Max Clamping Voltage 14.5V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 58W
Applications General Purpose
Capacitance @ Frequency 25pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030080-CPDQR5V0C-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR5V0C-HF CAD Model

Description

The Comchip Technology 1030080-CPDQR5V0C-HF is a Zener diode designed for use in circuit protection.

  • Manufacturer: Comchip Technology
  • Application: Circuit Protection
  • STAND-OFF Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 6.1V
  • Max Clamping Voltage: 14.5V
  • Peak Pulse Current (Ippm): 4A (8/20μs)
  • Power Dissipation: 58W
  • Capacitance: 25pF @ 1MHz
  • Mounting Type: SMD (SMT)
  • Channels: Bidirectional
  • Case/Package: 0402/SOD-923F
  • Package: Reel of 5k pcs
