Same model may have multiple batches, images only for reference.

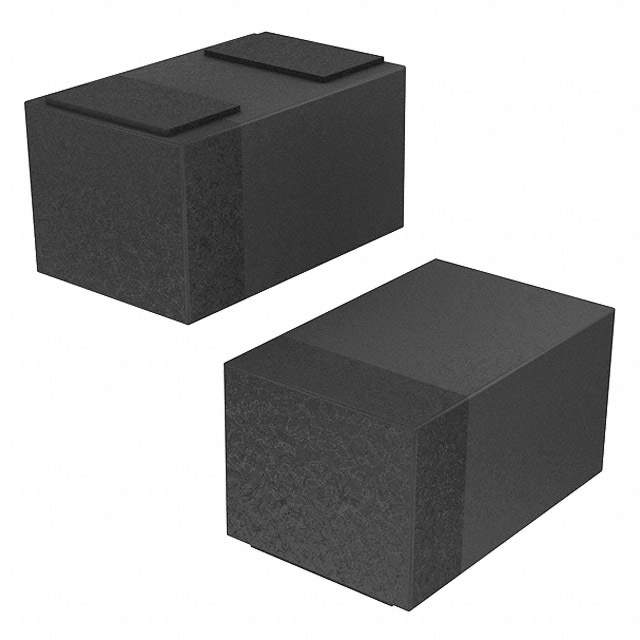

CPDQR12V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR12V0U-HF

Part No CPDQR12V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 12VWM 24VC 0402
Datasheet
CPDQR12V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 12V
Minimum Breakdown Voltage 13.3V
Max Clamping Voltage 24V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 120W
Applications General Purpose
Capacitance @ Frequency 60pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030074-CPDQR12V0U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR12V0U-HF CAD Model

Description

Comchip Technology Zener diode is a reliable and efficient solution for general-purpose applications.

  • Mounting Type: SMD (SMT)
  • Case/Package: 0402/SOD-923F
  • STAND-OFF Voltage (Vwm): 12V
  • Minimum Breakdown Voltage: 13.3V
  • Maximum Clamping Voltage: 24V
  • Peak Pulse Current(Ippm): 5A (8/20μs)
  • Power Dissipation - Pd: 120W
  • Capacitance @ Frequency: 60pF @ 1MHz
  • Component: circuit protection
  • Status: active
  • Popularity: medium
  • Package Quantity: 5k pcs
