Same model may have multiple batches, images only for reference.

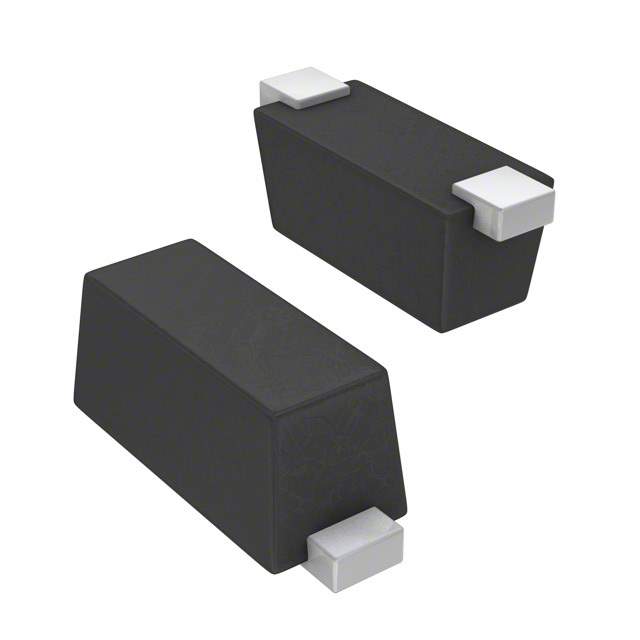

CPDQ3V3U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQ3V3U-HF

Part No CPDQ3V3U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10.4VC SOD923F
Datasheet
CPDQ3V3U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 3.3V
Minimum Breakdown Voltage 5V
Max Clamping Voltage 10.4V
Peak Pulse Current(Ippm) 9.8A (8/20μs)
Power Dissipation - Pd 102W
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030060-CPDQ3V3U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQ3V3U-HF CAD Model

Description

This Zener diode from Comchip Technology is a reliable and efficient circuit protection solution.

  • Manufacturer: Comchip Technology
  • Capacitance: 80pF @ 1MHz
  • STAND-OFF Voltage (Vwm): 3.3V
  • Minimum Breakdown Voltage: 5V
  • Max Clamping Voltage: 10.4V
  • Peak Pulse Current(Ippm): 9.8A (8/20μs)
  • Mounting Type: SMD (SMT)
  • Case/Package: 0402/SOD-923F
  • Package Quantity: 8k pcs
