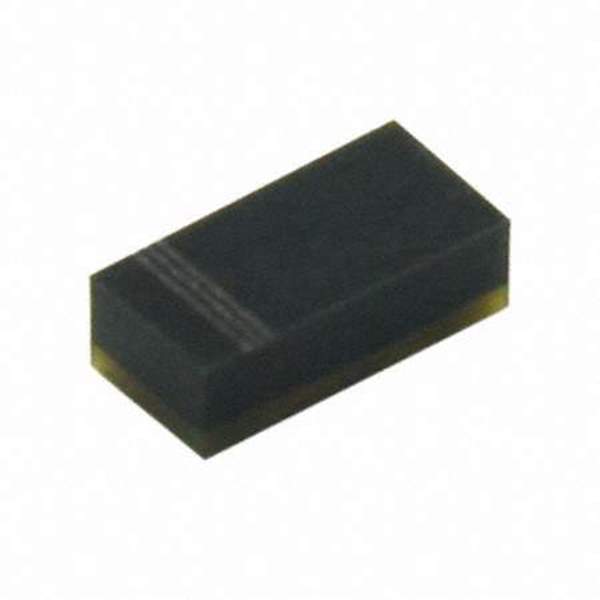

CPDF24V-HF Real Image
Same model may have multiple batches, images only for reference.

CPDF24V-HF

Part No CPDF24V-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 25VC 1005
Datasheet
CPDF24V-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 25V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 47W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Mounting SMD (SMT)
Case / Package 1005/SOD-323F
Win Source Part Number 1030043-CPDF24V-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDF24V-HF CAD Model

Description

The CPDF24V-HF from Comchip Technology is a Zener-type product with a general-purpose application.

  • Case/Package: 1005/SOD-323F
  • STAND-OFF voltage (Vwm): 24V
  • Minimum breakdown voltage: 25V
  • Maximum clamping voltage: 25V
  • Peak pulse current (Ippm): 1A (8/20μs)
  • Power dissipation - Pd: 47W
  • Supply and demand status: balanced
  • Packaging: reel - TR
  • Quantity per package: 4k pcs
