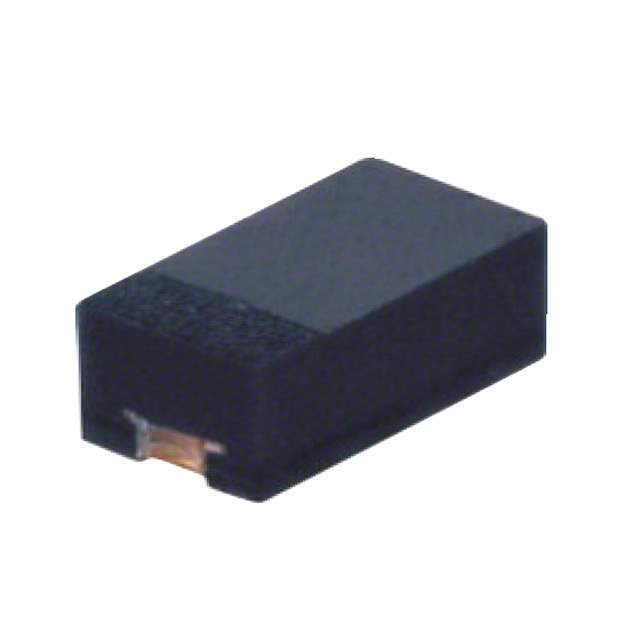

The CDSU4448 is a high-speed switching diode manufactured by Comchip Technology. This diode is designed for applications requiring fast switching speeds and low forward voltage drop. Its compact surface-mount package makes it ideal for high-density circuit board designs. The CDSU4448 is suitable for a wide range of general-purpose and high-speed switching applications.

Applications

• High-speed switching circuits
• General rectification
• Reverse polarity protection
• Signal processing
• Small signal switching

Features

• Fast switching speed: trr < 4 ns
• Low forward voltage drop: VF < 1.0 V
• Surface mount package: SOD-323
• High breakdown voltage: VR = 100V
• High surge current capability
• RoHS compliant

Benefits

• Improved switching performance: The fast switching speed enables efficient operation in high-frequency circuits.
• Reduced power loss: The low forward voltage drop minimizes power dissipation.
• Compact design: The small surface mount package saves valuable PCB real estate.
• Enhanced circuit protection: The high breakdown voltage provides reliable protection against voltage transients.
• Environmentally friendly: RoHS compliant for environmental regulations.

Additional Details

The CDSU4448 is housed in a SOD-323 package. The maximum forward current is 150mA, and the operating temperature range is -65°C to +150°C. Its fast recovery time is crucial in applications where minimal switching losses are required. This diode is commonly used in various electronic devices and circuits due to its reliable performance and small size. It is a suitable replacement for other general purpose diodes where high speed switching is needed.
